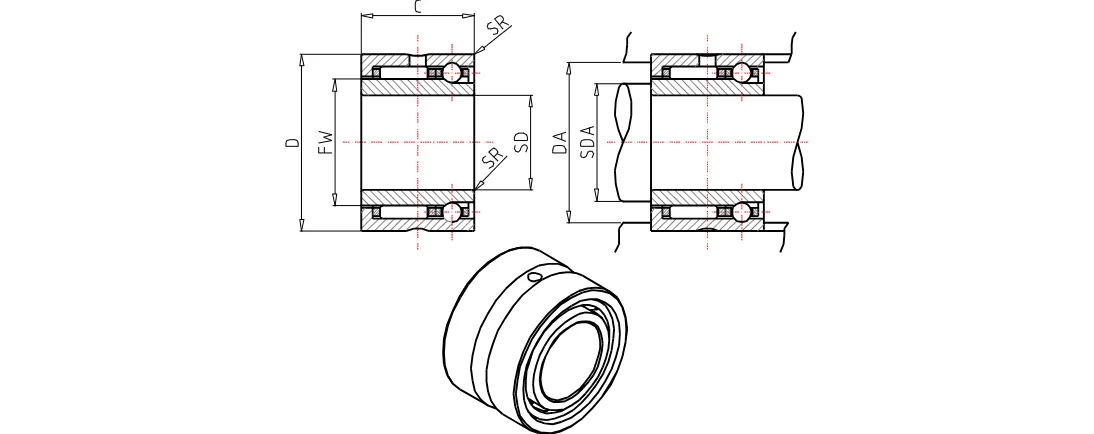

IKO NATA5911
Combined with Angular Contact Ball Bearing
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NATA5911
Shaft Diameter
55
mm
Inside Diameter
55
mm
Outside Diameter
80
mm
Width
34
mm
rs min.
1.0
mm
Inscribed circle diameter
63
mm
da min
60
mm
Da max
75
mm
Basic dynamic load rating (Radial)
39500
N
Basic dynamic load rating (Axial)
10400
N
Basic static load rating (Radial)
74400
N
Basic static load rating (Axial)
24700
N
Mass
585.0
g
