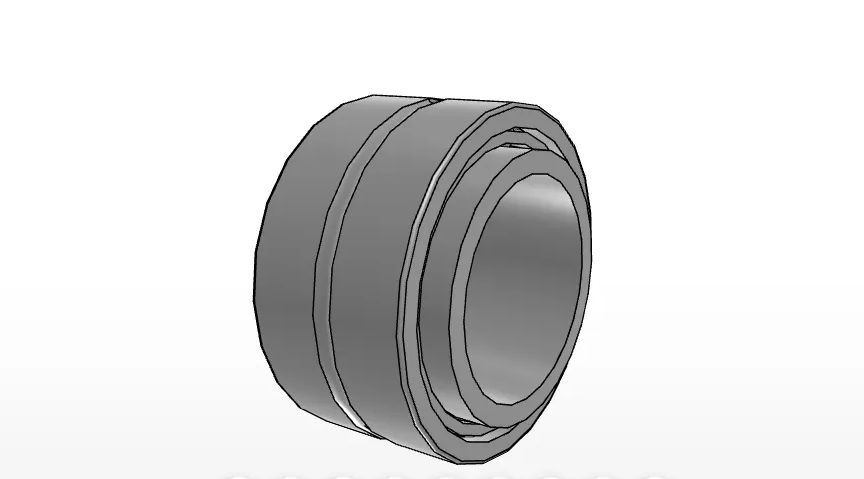

IKO NATB5907
Combined with Three Point Contact Ball Bearing
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NATB5907
Shaft Diameter
35
mm
Inside Diameter
35
mm
Outside Diameter
55
mm
Width
27
mm
Width of innerring
30
mm
rs min.
0.6
mm
Inscribed circle diameter
42
mm
da min
39
mm
Da max
51
mm
Basic dynamic load rating (Radial)
24000
N
Basic dynamic load rating (Axial)
4890
N
Basic static load rating (Radial)
42100
N
Basic static load rating (Axial)
9870
N
Mass
260.0
g
