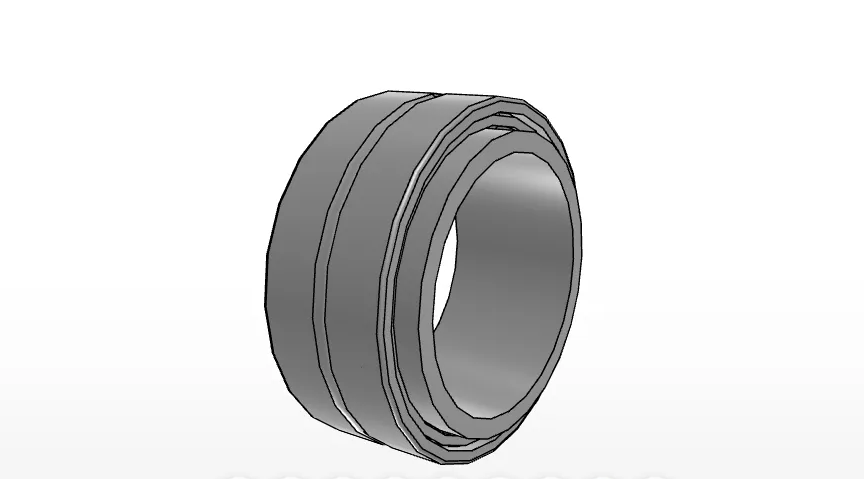

IKO NATB5913
Combined with Three Point Contact Ball Bearing
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NATB5913
Shaft Diameter
65
mm
Inside Diameter
65
mm
Outside Diameter
90
mm
Width
34
mm
Width of innerring
38
mm
rs min.
1.0
mm
Inscribed circle diameter
75
mm
da min
70
mm
Da max
85
mm
Basic dynamic load rating (Radial)
43800
N
Basic dynamic load rating (Axial)
11000
N
Basic static load rating (Radial)
90200
N
Basic static load rating (Axial)
28700
N
Mass
710.0
g
