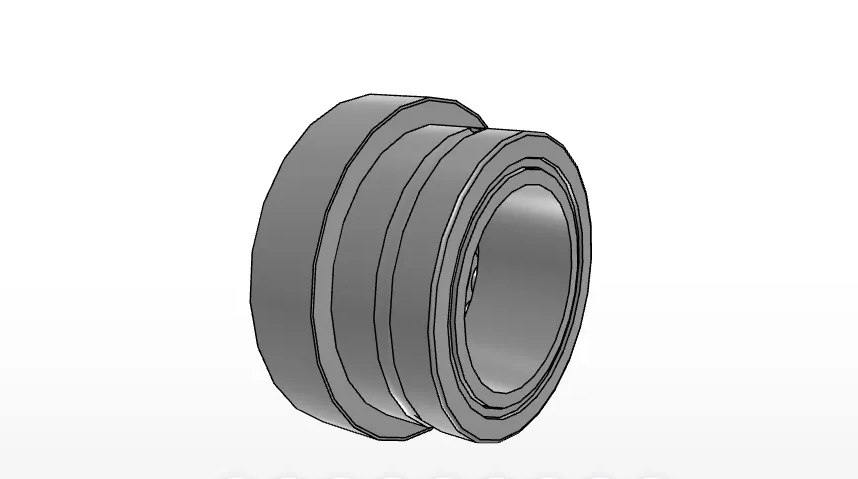

IKO NAXI3532Z
Combined with Thrust Ball Bearing, With Inner Ring, With Dust Cover
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NAXI3532Z
Shaft Diameter
35
mm
Inside Diameter
35
mm
Outside Diameter
52
mm
Outside Diameter
60
mm
Outside Diameter
61
mm
Width
32
mm
Width of innerring
20.0
mm
Width
13
mm
Dimension
10.0
mm
rs min.
0.6
mm
r1s min
0.3
mm
Inscribed circle diameter
40
mm
Inside Diameter
40
mm
da min
52
mm
Dimension related to the installation
39
mm
Basic dynamic load rating (Radial)
29400
N
Basic dynamic load rating (Axial)
26900
N
Basic static load rating (Radial)
54100
N
Basic static load rating (Axial)
50000
N
Type of Inner Ring
LRT 354020
Mass
273.0
g
