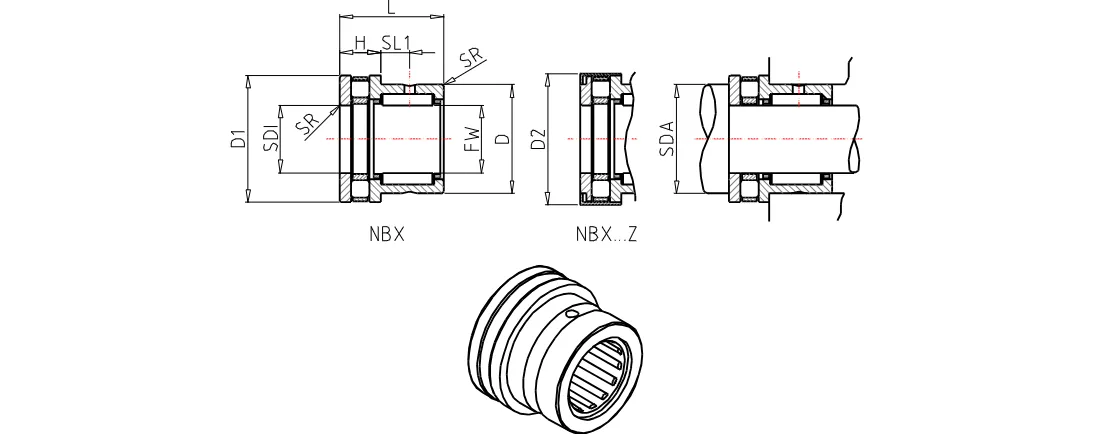

IKO NBX2030
Combined with Thrust Roller Bearing, W/o Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBX2030
Shaft Diameter
20
mm
Inscribed circle diameter
20
mm
Outside Diameter
30
mm
Outside Diameter
35
mm
Outside Diameter
0.0
mm
Width
30
mm
Width
10
mm
Dimension
10.5
mm
rs min.
0.3
mm
Inside Diameter
20
mm
da min
33
mm
Basic dynamic load rating (Radial)
17600
N
Basic dynamic load rating (Axial)
19000
N
Basic static load rating (Radial)
25400
N
Basic static load rating (Axial)
48700
N
Mass
94.0
g
