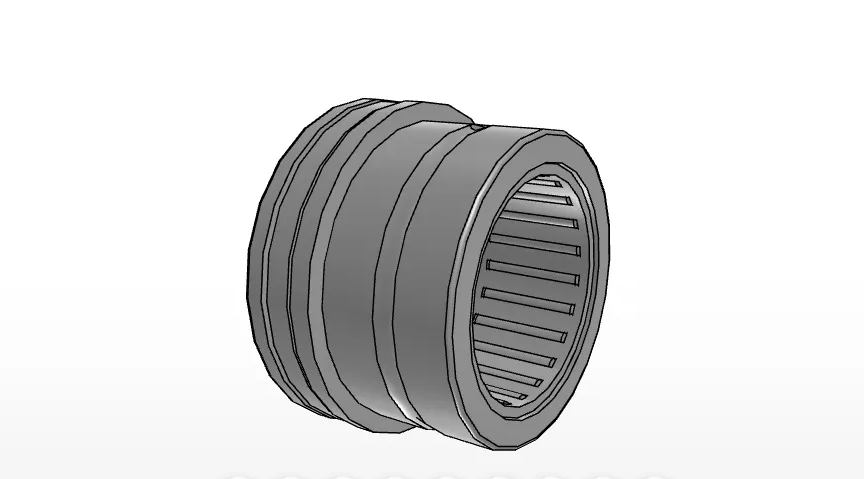

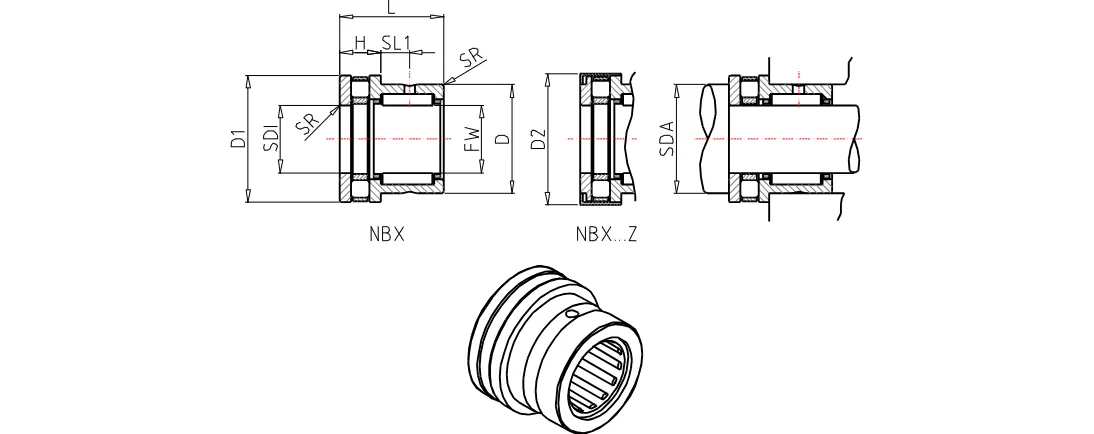

IKO NBX3030
Combined with Thrust Roller Bearing, W/o Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBX3030
Shaft Diameter
30
mm
Inscribed circle diameter
30
mm
Outside Diameter
42
mm
Outside Diameter
47
mm
Outside Diameter
0.0
mm
Width
30
mm
Width
11
mm
Dimension
9.5
mm
rs min.
0.6
mm
Inside Diameter
30
mm
da min
45
mm
Basic dynamic load rating (Radial)
25100
N
Basic dynamic load rating (Axial)
27400
N
Basic static load rating (Radial)
40100
N
Basic static load rating (Axial)
81000
N
Mass
160.0
g
