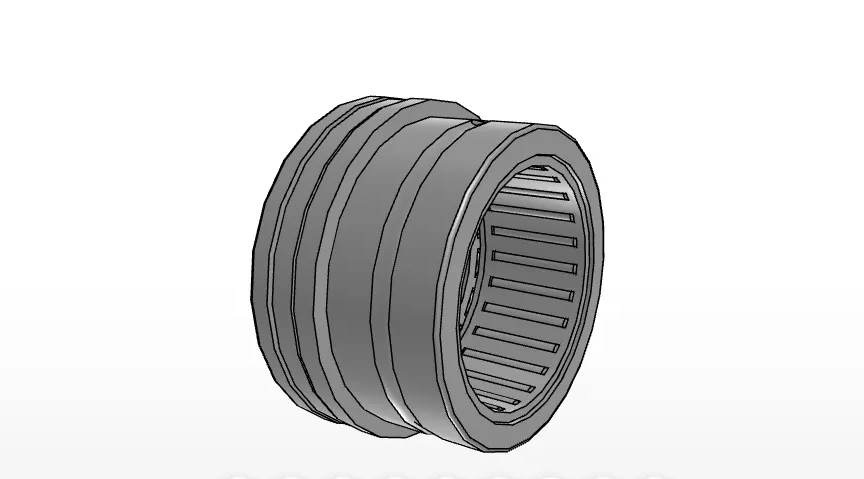

IKO NBX3530
Combined with Thrust Roller Bearing, W/o Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBX3530
Shaft Diameter
35
mm
Inscribed circle diameter
35
mm
Outside Diameter
47
mm
Outside Diameter
52
mm
Outside Diameter
0.0
mm
Width
30
mm
Width
12
mm
Dimension
9.0
mm
rs min.
0.6
mm
Inside Diameter
35
mm
da min
50
mm
Basic dynamic load rating (Radial)
26900
N
Basic dynamic load rating (Axial)
29100
N
Basic static load rating (Radial)
46200
N
Basic static load rating (Axial)
91100
N
Mass
186.0
g
