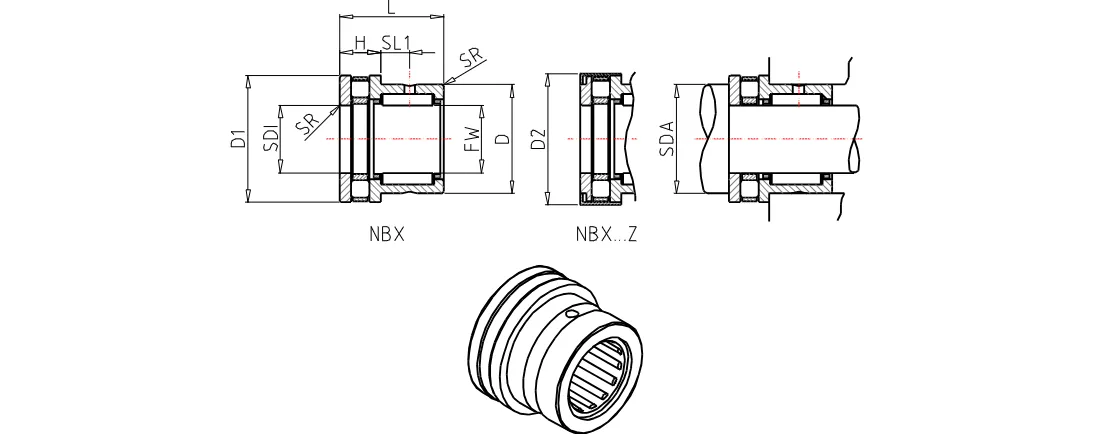

IKO NBX5035Z
Combined with Thrust Roller Bearing, W/o Inner Ring, With Dust Cover
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBX5035Z
Shaft Diameter
50
mm
Inscribed circle diameter
50
mm
Outside Diameter
62
mm
Outside Diameter
70
mm
Outside Diameter
71.5
mm
Width
35
mm
Width
14
mm
Dimension
10.0
mm
rs min.
0.6
mm
Inside Diameter
50
mm
da min
67
mm
Basic dynamic load rating (Radial)
42200
N
Basic dynamic load rating (Axial)
43300
N
Basic static load rating (Radial)
83400
N
Basic static load rating (Axial)
148000
N
Mass
325.0
g
