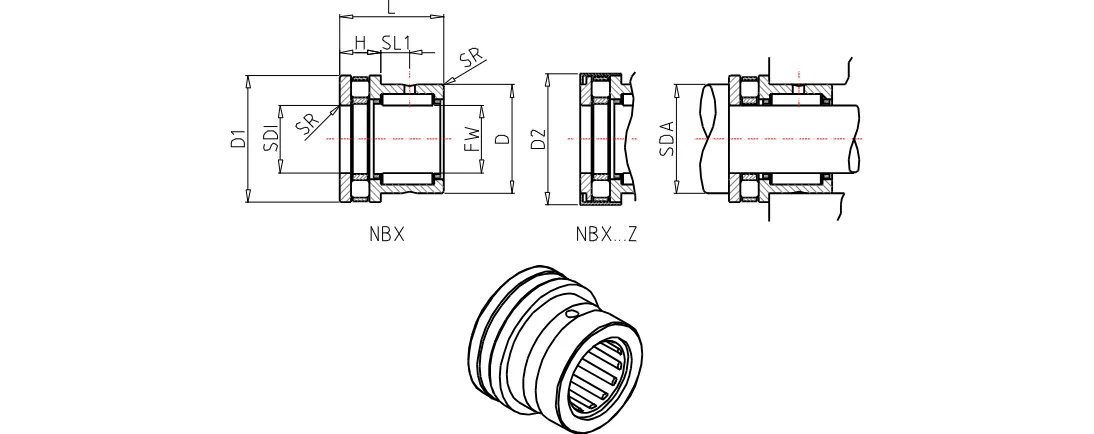

IKO NBX6040
Combined with Thrust Roller Bearing, W/o Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBX6040
Shaft Diameter
60
mm
Inscribed circle diameter
60
mm
Outside Diameter
72
mm
Outside Diameter
85
mm
Outside Diameter
0.0
mm
Width
40
mm
Width
17
mm
Dimension
12.0
mm
rs min.
1.0
mm
Inside Diameter
60
mm
da min
82
mm
Basic dynamic load rating (Radial)
47500
N
Basic dynamic load rating (Axial)
64600
N
Basic static load rating (Radial)
103000
N
Basic static load rating (Axial)
224000
N
Mass
501.0
g
