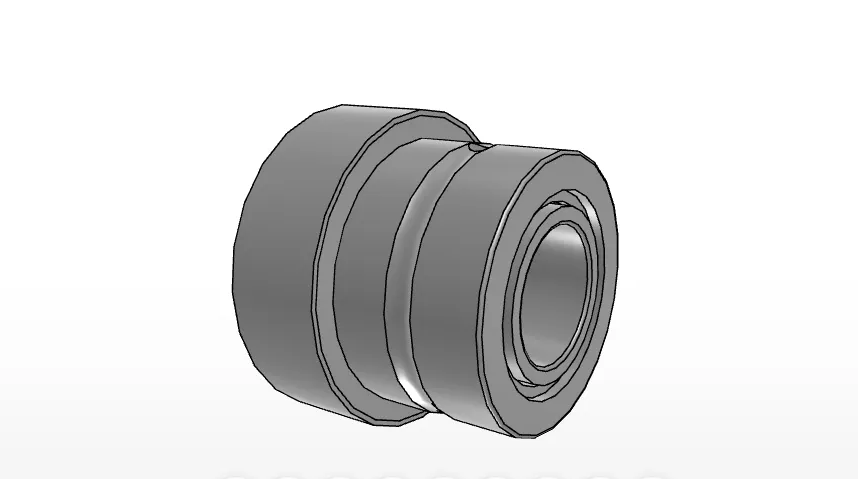

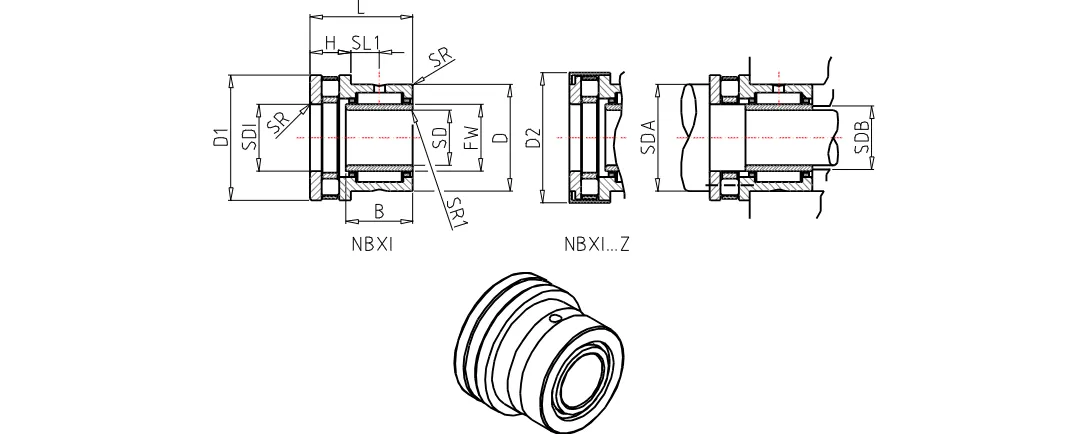

IKO NBXI1223Z
Combined with Thrust Roller Bearing, With Inner Ring, With Dust Cover
(BRAND)：IKO
(Availability)：In Stock
Order Number
NBXI1223Z
Shaft dia.
12
mm
Inside Diameter
12
mm
Outside Diameter
24
mm
Outside Diameter
28
mm
Outside Diameter
29.0
mm
Width
23
mm
Width of innerring
16.5
mm
Width
9
mm
Dimension
6.5
mm
rs min.
0.3
mm
rs min.
0.3
mm
Inscribed circle diameter
15
mm
Inside Diameter
15
mm
da min
26
mm
Dimension related to the installation
14
mm
Basic dynamic load rating (Radial)
12300
N
Basic dynamic load rating (Axial)
10200
N
Basic static load rating (Radial)
14900
N
Basic static load rating (Axial)
23900
N
Type of Inner Ring
LRT 121516
Mass
63
g
