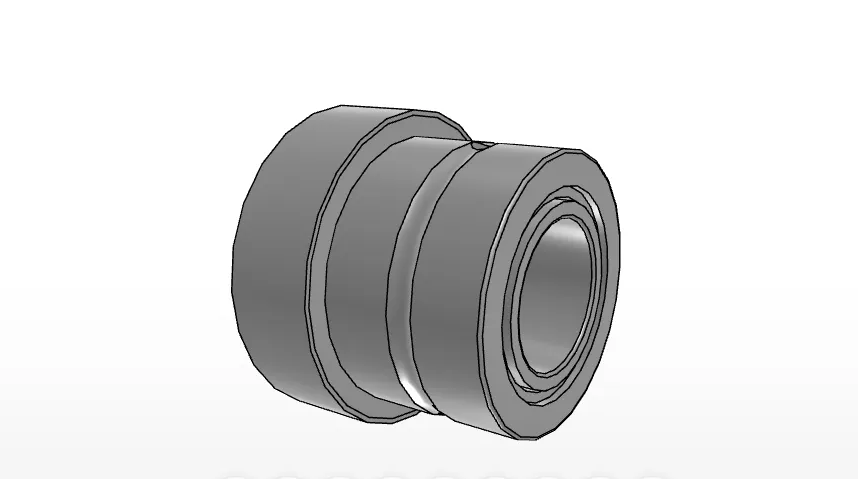

IKO NBXI1425Z
Combined with Thrust Roller Bearing, With Inner Ring, With Dust Cover
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBXI1425Z
Shaft dia.
14
mm
Inside Diameter
14
mm
Outside Diameter
26
mm
Outside Diameter
30
mm
Outside Diameter
31.0
mm
Width
25
mm
Width of innerring
17.0
mm
Width
9
mm
Dimension
8.0
mm
rs min.
0.3
mm
rs min.
0.3
mm
Inscribed circle diameter
17
mm
Inside Diameter
17
mm
da min
28
mm
Dimension related to the installation
16
mm
Basic dynamic load rating (Radial)
12900
N
Basic dynamic load rating (Axial)
11400
N
Basic static load rating (Radial)
16300
N
Basic static load rating (Axial)
28600
N
Type of Inner Ring
LRT 141717
Mass
73
g
