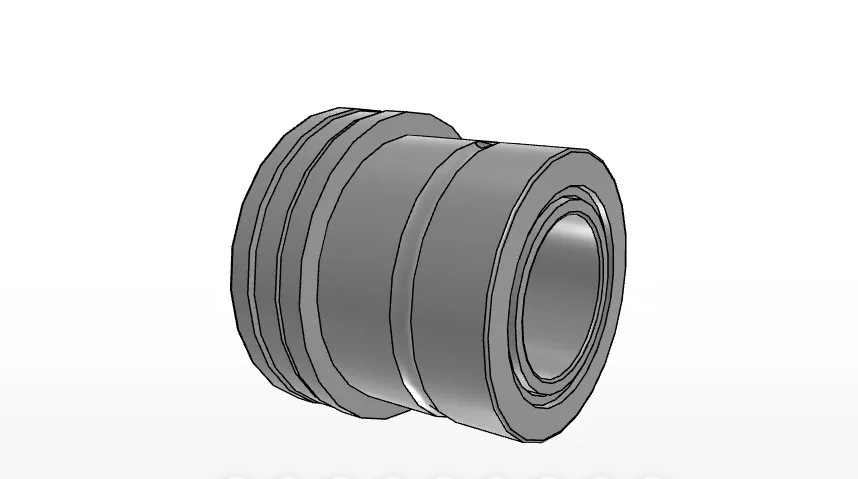

IKO NBXI1730
Combined with Thrust Roller Bearing, With Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBXI1730
Shaft dia.
17
mm
Inside Diameter
17
mm
Outside Diameter
30
mm
Outside Diameter
35
mm
Outside Diameter
0.0
mm
Width
30
mm
Width of innerring
20.5
mm
Width
10
mm
Dimension
10.5
mm
rs min.
0.3
mm
rs min.
0.3
mm
Inscribed circle diameter
20
mm
Inside Diameter
20
mm
da min
33
mm
Dimension related to the installation
19
mm
Basic dynamic load rating (Radial)
17600
N
Basic dynamic load rating (Axial)
19000
N
Basic static load rating (Radial)
25400
N
Basic static load rating (Axial)
48700
N
Type of Inner Ring
LRT 172020
Mass
108
g
