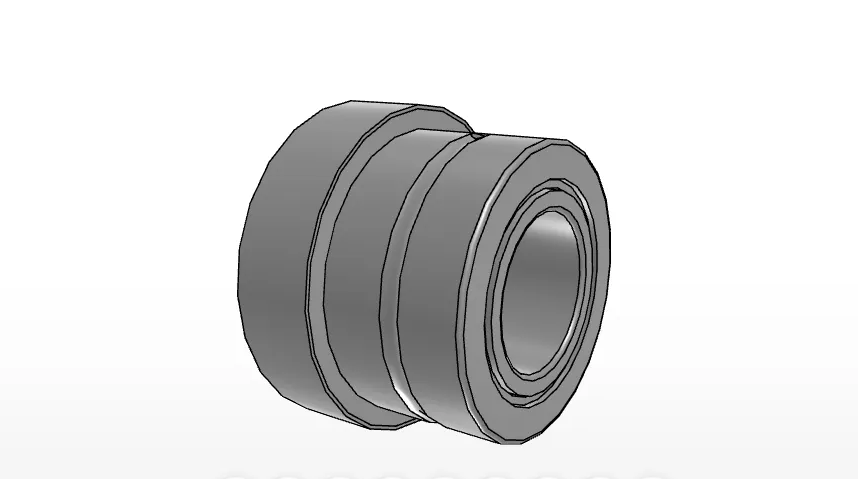

IKO NBXI2030Z
Combined with Thrust Roller Bearing, With Inner Ring, With Dust Cover
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBXI2030Z
Shaft dia.
20
mm
Inside Diameter
20
mm
Outside Diameter
37
mm
Outside Diameter
42
mm
Outside Diameter
43.0
mm
Width
30
mm
Width of innerring
20.5
mm
Width
11
mm
Dimension
9.5
mm
rs min.
0.6
mm
rs min.
0.3
mm
Inscribed circle diameter
25
mm
Inside Diameter
25
mm
da min
40
mm
Dimension related to the installation
24
mm
Basic dynamic load rating (Radial)
20000
N
Basic dynamic load rating (Axial)
22700
N
Basic static load rating (Radial)
32100
N
Basic static load rating (Axial)
60700
N
Type of Inner Ring
LRT 202520
Mass
175
g
