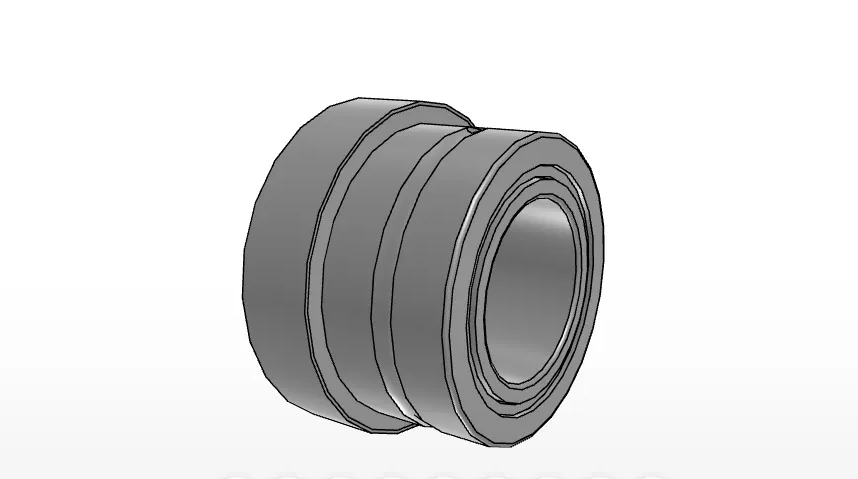

IKO NBXI2530Z
Combined with Thrust Roller Bearing, With Inner Ring, With Dust Cover
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBXI2530Z
Shaft dia.
25
mm
Inside Diameter
25
mm
Outside Diameter
42
mm
Outside Diameter
47
mm
Outside Diameter
48.0
mm
Width
30
mm
Width of innerring
20.5
mm
Width
11
mm
Dimension
9.5
mm
rs min.
0.6
mm
rs min.
0.3
mm
Inscribed circle diameter
30
mm
Inside Diameter
30
mm
da min
45
mm
Dimension related to the installation
29
mm
Basic dynamic load rating (Radial)
25100
N
Basic dynamic load rating (Axial)
27400
N
Basic static load rating (Radial)
40100
N
Basic static load rating (Axial)
81000
N
Type of Inner Ring
LRT 253020
Mass
200
g
