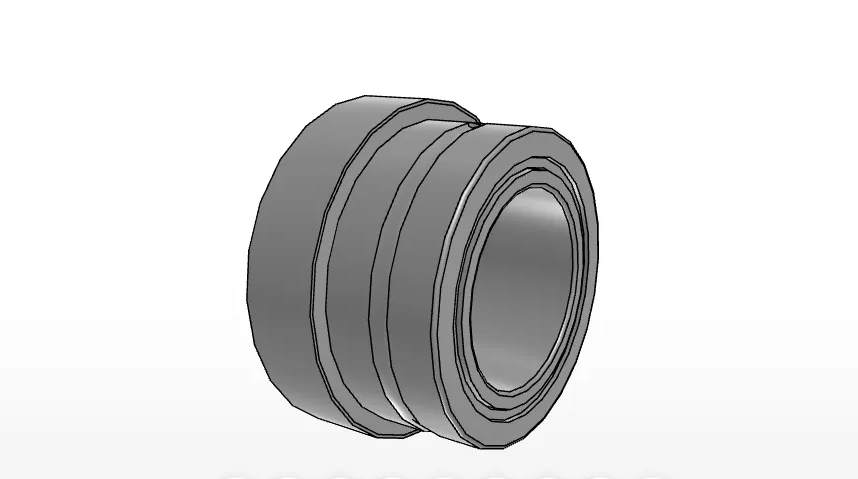

IKO NBXI3030Z
Combined with Thrust Roller Bearing, With Inner Ring, With Dust Cover
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBXI3030Z
Shaft dia.
30
mm
Inside Diameter
30
mm
Outside Diameter
47
mm
Outside Diameter
52
mm
Outside Diameter
53.0
mm
Width
30
mm
Width of innerring
20.0
mm
Width
12
mm
Dimension
9.0
mm
rs min.
0.6
mm
rs min.
0.3
mm
Inscribed circle diameter
35
mm
Inside Diameter
35
mm
da min
50
mm
Dimension related to the installation
34
mm
Basic dynamic load rating (Radial)
26900
N
Basic dynamic load rating (Axial)
29100
N
Basic static load rating (Radial)
46200
N
Basic static load rating (Axial)
91100
N
Type of Inner Ring
LRT 303520
Mass
232
g
