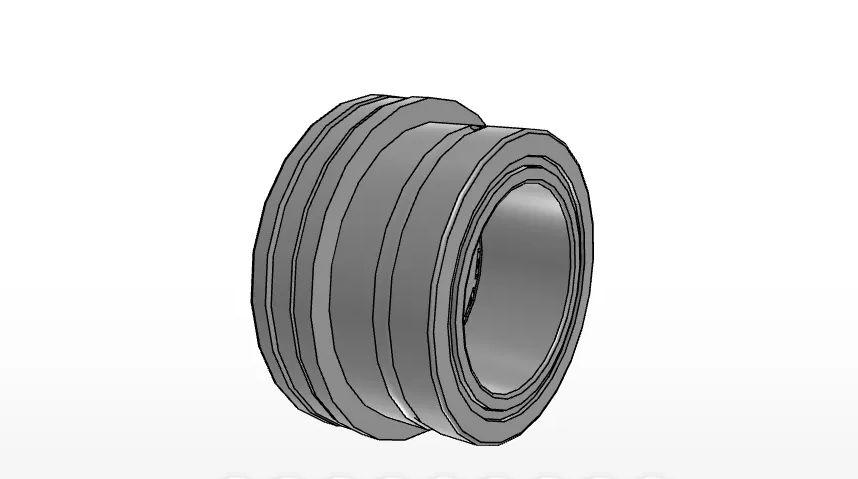

IKO NBXI3532
Combined with Thrust Roller Bearing, With Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBXI3532
Shaft dia.
35
mm
Inside Diameter
35
mm
Outside Diameter
52
mm
Outside Diameter
60
mm
Outside Diameter
0.0
mm
Width
32
mm
Width of innerring
20.0
mm
Width
13
mm
Dimension
10.0
mm
rs min.
0.6
mm
rs min.
0.3
mm
Inscribed circle diameter
40
mm
Inside Diameter
40
mm
da min
57
mm
Dimension related to the installation
39
mm
Basic dynamic load rating (Radial)
29400
N
Basic dynamic load rating (Axial)
41700
N
Basic static load rating (Radial)
54100
N
Basic static load rating (Axial)
133000
N
Type of Inner Ring
LRT 354020
Mass
286
g
