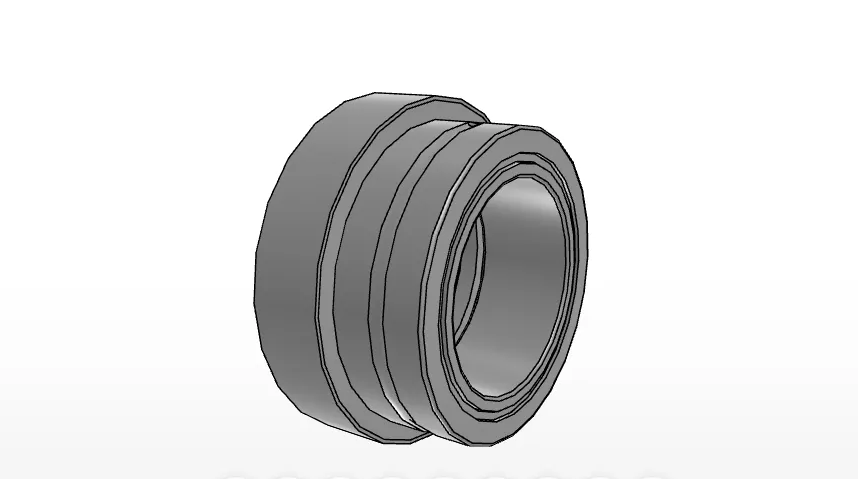

IKO NBXI4032Z
Combined with Thrust Roller Bearing, With Inner Ring, With Dust Cover
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBXI4032Z
Shaft dia.
40
mm
Inside Diameter
40
mm
Outside Diameter
58
mm
Outside Diameter
65
mm
Outside Diameter
66.5
mm
Width
32
mm
Width of innerring
20.0
mm
Width
14
mm
Dimension
9.0
mm
rs min.
0.6
mm
rs min.
0.3
mm
Inscribed circle diameter
45
mm
Inside Diameter
45
mm
da min
62
mm
Dimension related to the installation
44
mm
Basic dynamic load rating (Radial)
31000
N
Basic dynamic load rating (Axial)
40800
N
Basic static load rating (Radial)
60200
N
Basic static load rating (Axial)
133000
N
Type of Inner Ring
LRT 404520
Mass
353
g
