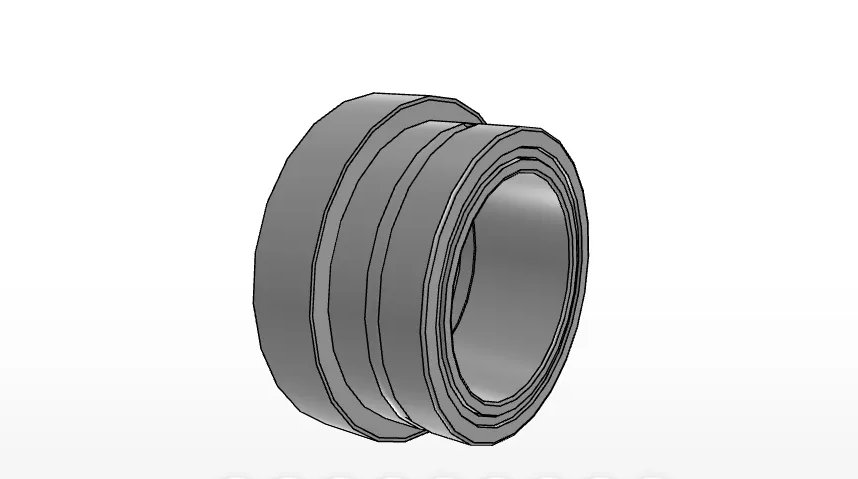

IKO NBXI4535Z
Combined with Thrust Roller Bearing, With Inner Ring, With Dust Cover
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBXI4535Z
Shaft dia.
45
mm
Inside Diameter
45
mm
Outside Diameter
62
mm
Outside Diameter
70
mm
Outside Diameter
71.5
mm
Width
35
mm
Width of innerring
25.0
mm
Width
14
mm
Dimension
10.0
mm
rs min.
0.6
mm
rs min.
0.3
mm
Inscribed circle diameter
50
mm
Inside Diameter
50
mm
da min
67
mm
Dimension related to the installation
49
mm
Basic dynamic load rating (Radial)
42200
N
Basic dynamic load rating (Axial)
43300
N
Basic static load rating (Radial)
83400
N
Basic static load rating (Axial)
148000
N
Type of Inner Ring
LRT 455025
Mass
396
g
