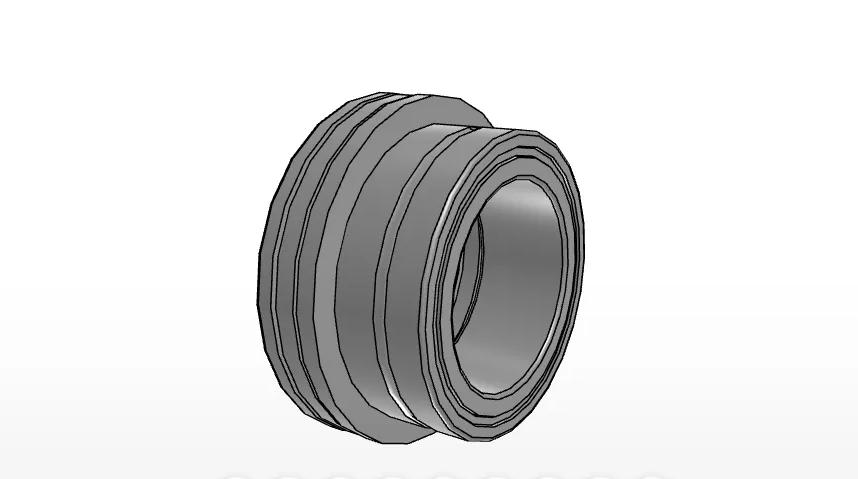

IKO NBXI5040
Combined with Thrust Roller Bearing, With Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NBXI5040
Shaft dia.
50
mm
Inside Diameter
50
mm
Outside Diameter
72
mm
Outside Diameter
85
mm
Outside Diameter
0.0
mm
Width
40
mm
Width of innerring
25.5
mm
Width
17
mm
Dimension
12.0
mm
rs min.
1.0
mm
rs min.
1.0
mm
Inscribed circle diameter
60
mm
Inside Diameter
60
mm
da min
82
mm
Dimension related to the installation
59
mm
Basic dynamic load rating (Radial)
47500
N
Basic dynamic load rating (Axial)
64600
N
Basic static load rating (Radial)
103000
N
Basic static load rating (Axial)
224000
N
Type of Inner Ring
LRT 506025
Mass
666
g
