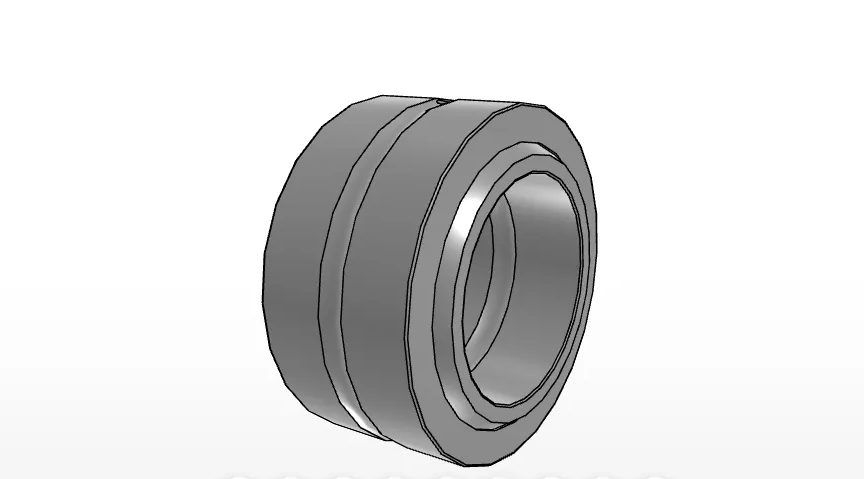

IKO SB115A
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, Not Seperable
(BRAND)：IKO
(Availability)：In Stock
Order Number
SB115A
Shaft Diameter
115
mm
Inside Diameter
115
mm
Outer Diameter
180
mm
Width of innerring
98
mm
Width
85
mm
Diameter
165.0
mm
rs min.
1.0
mm
rs min.
0.0
mm
rs min.
0.0
mm
Angle
5
degree
da min
120.5
mm
da max
132.5
mm
da max
174.5
mm
da min
152.0
mm
Dynamic load capacity
1380000
N
Static load capacity
8250000
N
Mass
10.30
kg
