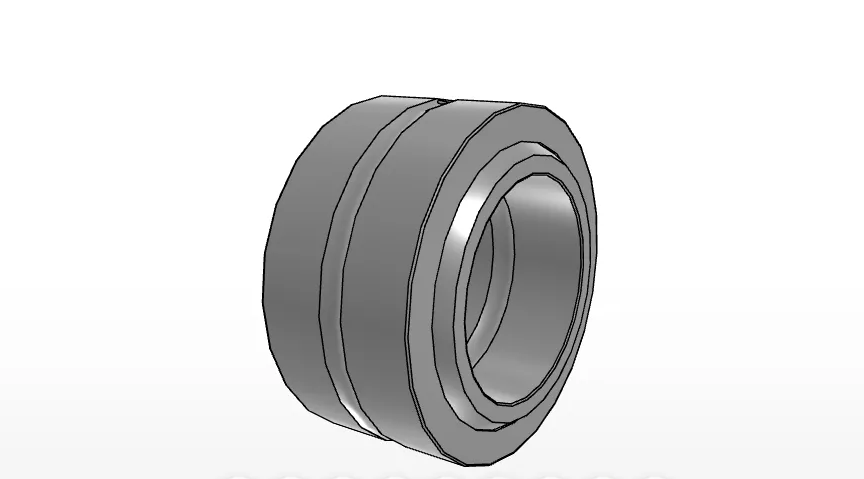

IKO SB120190105
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, Outer Ring Split Type
(BRAND)：IKO
(Availability)：In Stock
Order Number
SB120190105
Shaft Diameter
120
mm
Inside Diameter
120
mm
Outer Diameter
190
mm
Width of innerring
105
mm
Width
90
mm
Diameter
175.0
mm
rs min.
1.0
mm
rs min.
0.0
mm
rs min.
0.0
mm
Angle
5
degree
da min
125.5
mm
da max
140.0
mm
da max
184.5
mm
da min
162.0
mm
Dynamic load capacity
1540000
N
Static load capacity
9270000
N
Mass
12.40
kg
