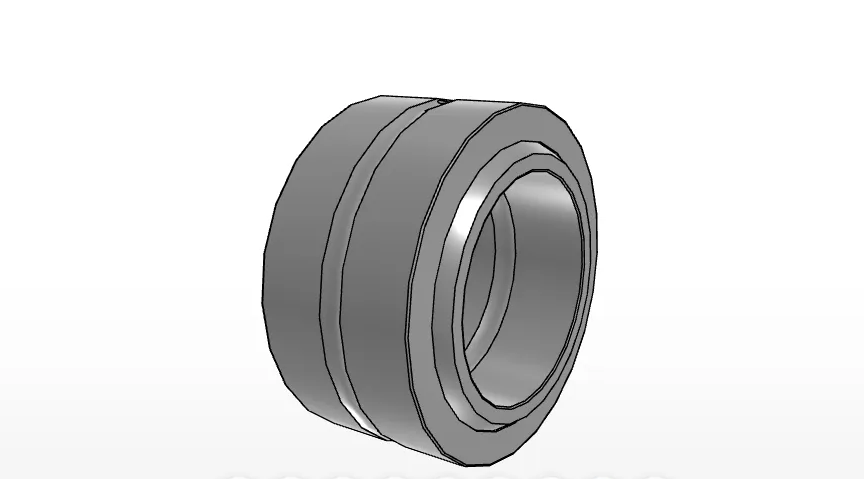

IKO SB130200110
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, Outer Ring Split Type
(BRAND)：IKO
(Availability)：In Stock
Order Number
SB130200110
Shaft Diameter
130
mm
Inside Diameter
130
mm
Outer Diameter
200
mm
Width of innerring
110
mm
Width
95
mm
Diameter
185.0
mm
rs min.
1.0
mm
rs min.
0.0
mm
rs min.
0.0
mm
Angle
5
degree
da min
135.5
mm
da max
148.5
mm
da max
194.5
mm
da min
171.0
mm
Dynamic load capacity
1720000
N
Static load capacity
10300000
N
Mass
13.80
kg
