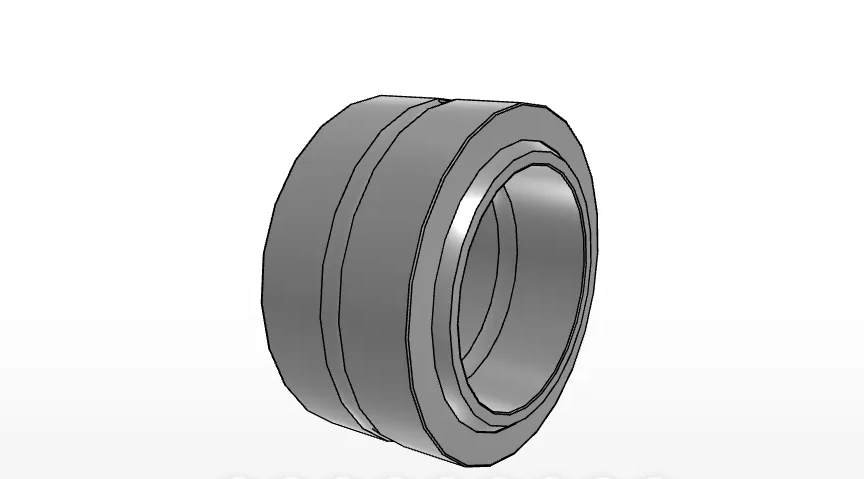

IKO SB150220120
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, Outer Ring Split Type
(BRAND)：IKO
(Availability)：In Stock
Order Number
SB150220120
Shaft Diameter
150
mm
Inside Diameter
150
mm
Outer Diameter
220
mm
Width of innerring
120
mm
Width
105
mm
Diameter
205.0
mm
rs min.
1.0
mm
rs min.
0.0
mm
rs min.
0.0
mm
Angle
5
degree
da min
155.5
mm
da max
166.0
mm
da max
214.5
mm
da min
189.0
mm
Dynamic load capacity
2110000
N
Static load capacity
12700000
N
Mass
17.00
kg
