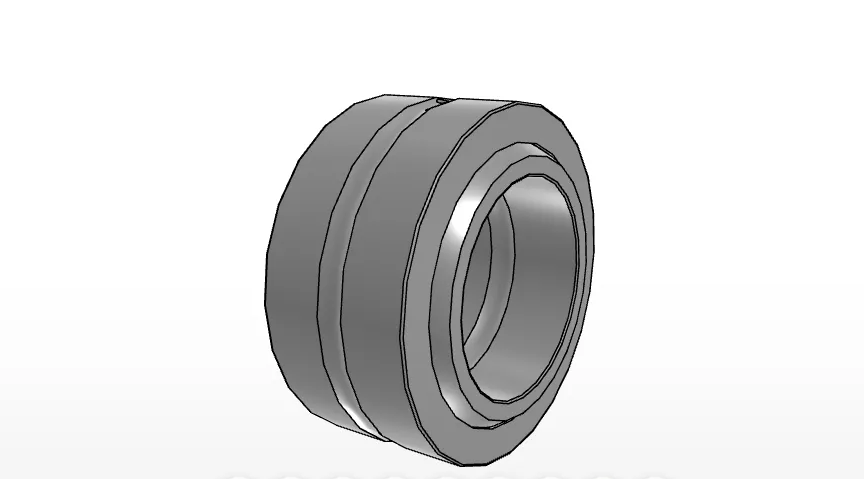

IKO SB65A
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, Not Seperable
(BRAND)：IKO
(Availability)：In Stock
Order Number
SB65A
Shaft Diameter
65
mm
Inside Diameter
65
mm
Outer Diameter
105
mm
Width of innerring
55
mm
Width
47
mm
Diameter
94.0
mm
rs min.
0.6
mm
rs min.
0.0
mm
rs min.
0.0
mm
Angle
5
degree
da min
69.5
mm
da max
76.0
mm
da max
100.5
mm
da min
87.0
mm
Dynamic load capacity
433000
N
Static load capacity
2600000
N
Mass
2.05
kg
