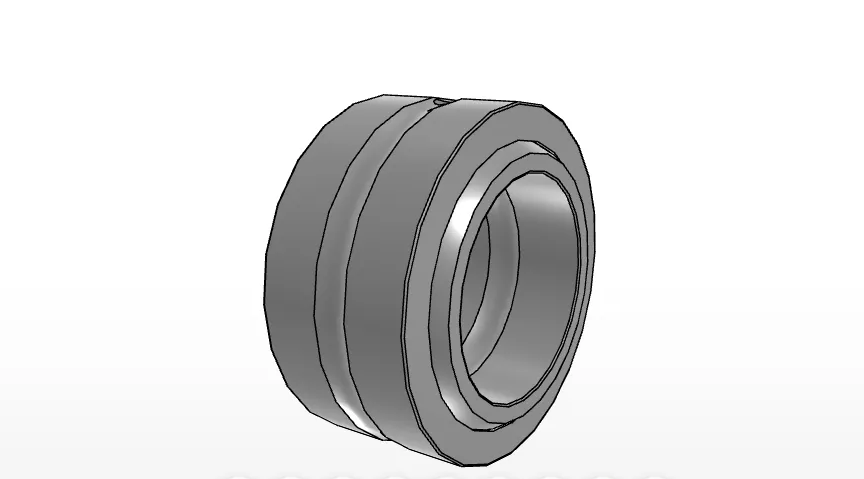

IKO SB70A
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, Not Seperable
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
SB70A
Shaft Diameter
70
mm
Inside Diameter
70
mm
Outer Diameter
110
mm
Width of innerring
58
mm
Width
50
mm
Diameter
100.0
mm
rs min.
0.6
mm
rs min.
0.0
mm
rs min.
0.0
mm
Angle
5
degree
da min
74.5
mm
da max
81.5
mm
da max
105.5
mm
da min
93.0
mm
Dynamic load capacity
490000
N
Static load capacity
2940000
N
Mass
2.22
kg
