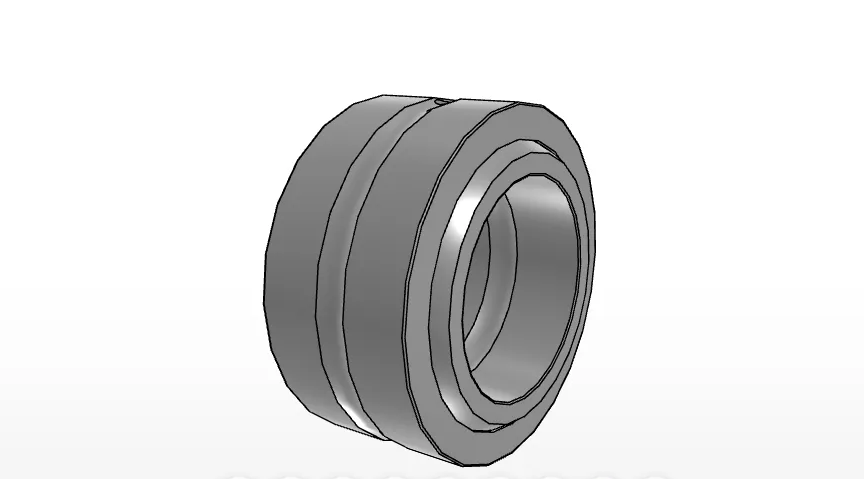

IKO SB75A
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, Not Seperaple
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
SB75A
Shaft Diameter
75
mm
Inside Diameter
75
mm
Outer Diameter
120
mm
Width of innerring
64
mm
Width
55
mm
Diameter
110.0
mm
rs min.
0.6
mm
rs min.
0.0
mm
rs min.
0.0
mm
Angle
5
degree
da min
79.5
mm
da max
89.5
mm
da max
115.5
mm
da min
102.0
mm
Dynamic load capacity
593000
N
Static load capacity
3560000
N
Mass
3.02
kg
