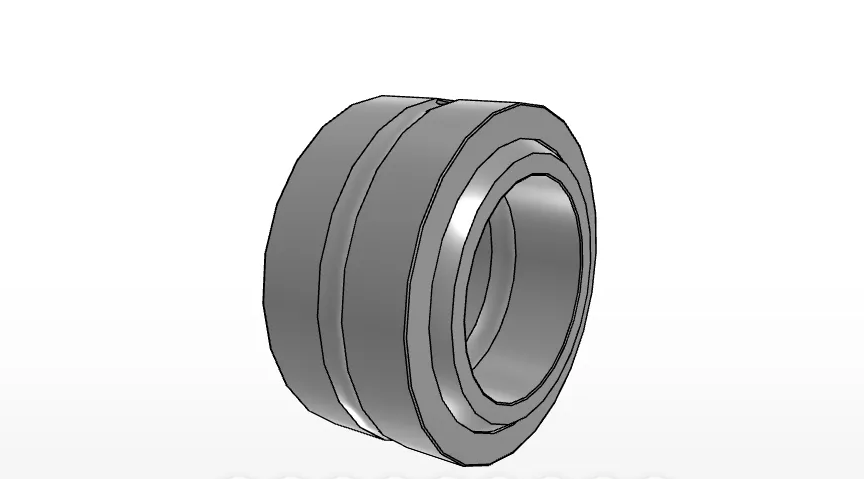

IKO SB85A
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, Not Seperaple
(BRAND)：IKO
(Availability)：In Stock
Order Number
SB85A
Shaft Diameter
85
mm
Inside Diameter
85
mm
Outer Diameter
135
mm
Width of innerring
74
mm
Width
63
mm
Diameter
125.0
mm
rs min.
0.6
mm
rs min.
0.0
mm
rs min.
0.0
mm
Angle
6
degree
da min
89.5
mm
da max
100.5
mm
da max
130.5
mm
da min
116.0
mm
Dynamic load capacity
772000
N
Static load capacity
4630000
N
Mass
4.29
kg
