IKO SB9014076

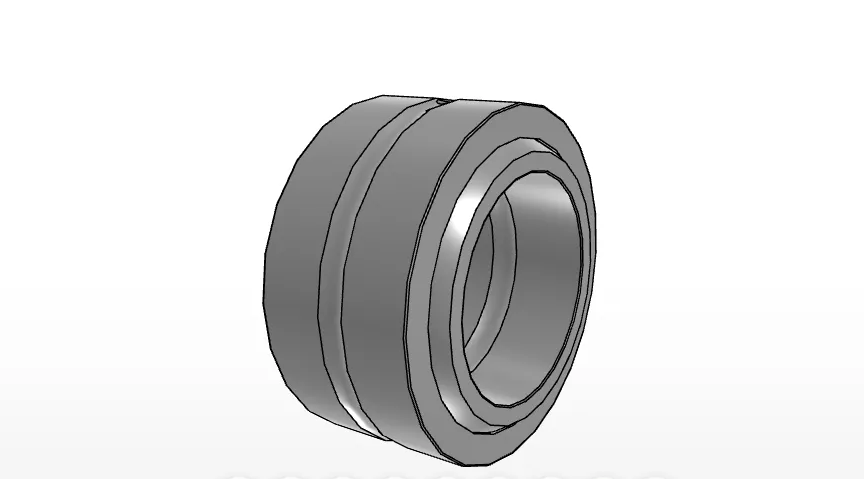

Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, Outer Ring Split Type
(BRAND)：IKO
(Availability)：In Stock
Order Number
SB9014076
Shaft Diameter
90
mm
Inside Diameter
90
mm
Outer Diameter
140
mm
Width of innerring
76
mm
Width
65
mm
Diameter
130.0
mm
rs min.
0.6
mm
rs min.
0.0
mm
rs min.
0.0
mm
Angle
5
degree
da min
94.5
mm
da max
105.5
mm
da max
135.5
mm
da min
121.0
mm
Dynamic load capacity
829000
N
Static load capacity
4970000
N
Mass
4.71
kg
