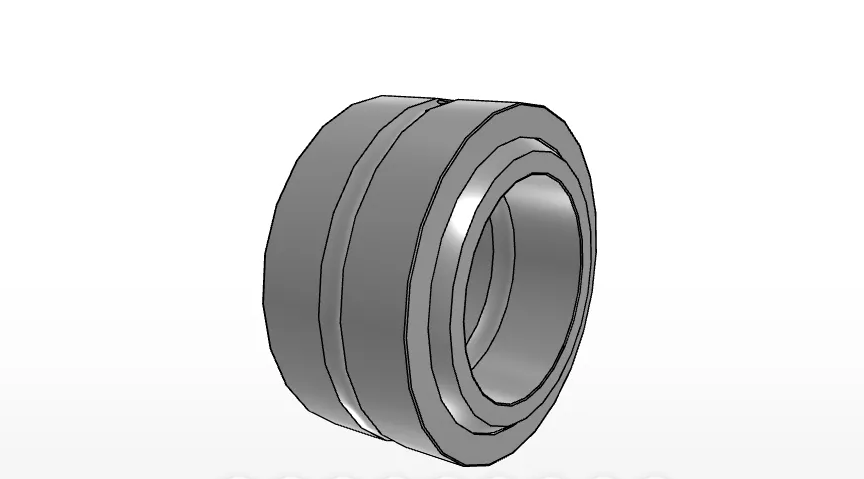

IKO SB9515082
Spherical Bushing, Metric, High Carbon Steel, Steel on Steel, Outer Ring Split Type
(BRAND)：IKO
(Availability)：In Stock
Order Number
SB9515082
Shaft Diameter
95
mm
Inside Diameter
95
mm
Outer Diameter
150
mm
Width of innerring
82
mm
Width
70
mm
Diameter
140.0
mm
rs min.
0.6
mm
rs min.
0.0
mm
rs min.
0.0
mm
Angle
5
degree
da min
99.5
mm
da max
113.5
mm
da max
145.5
mm
da min
130.0
mm
Dynamic load capacity
961000
N
Static load capacity
5770000
N
Mass
6.05
kg
