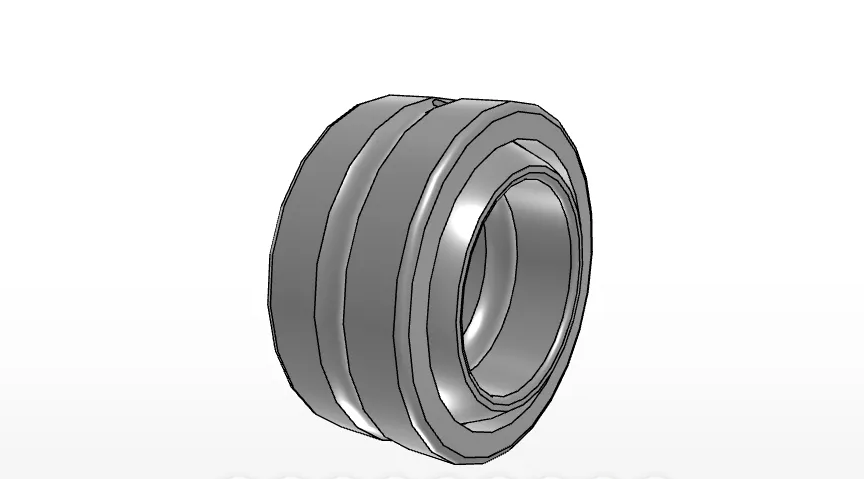

IKO SBB12
Spherical Bushing, Inch Series, High Carbon Steel, Steel on Steel, Not Seperable
(BRAND)：IKO
(Availability)：In Stock
Order Number
SBB12

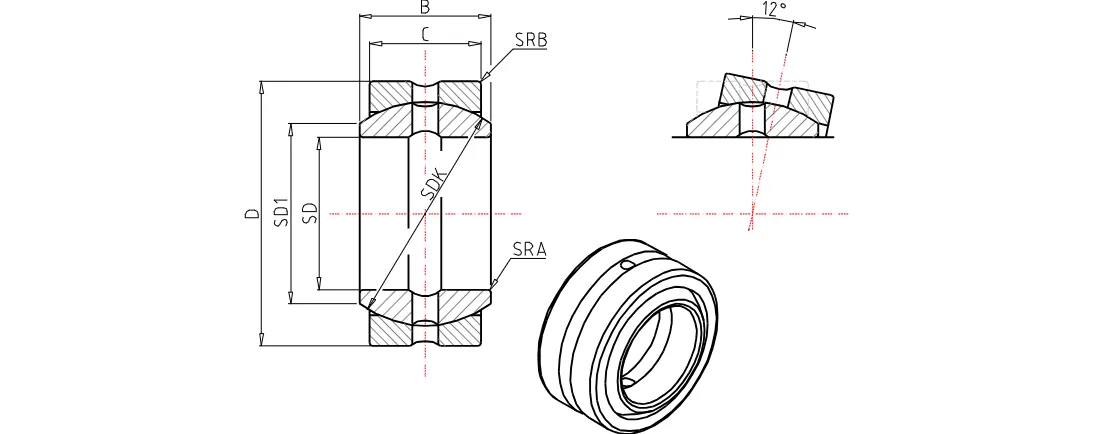

Shaft Diameter
19.050
mm
Inside Diameter
19.05
mm
Outer Diameter
31.75
mm
Width of innerring
16.66
mm
Width
14.27
mm
Diameter
27.5
mm
Min.Radial internal clearance
0.08
mm
Max.Radial internal clearance
0.18
mm
Dimension related to the installation
21.4
mm
ra max
0.6
mm
rb max
0.8
mm
Dynamic load capacity
38500
N
Static load capacity
231000
N
Mass
0.06
kg
