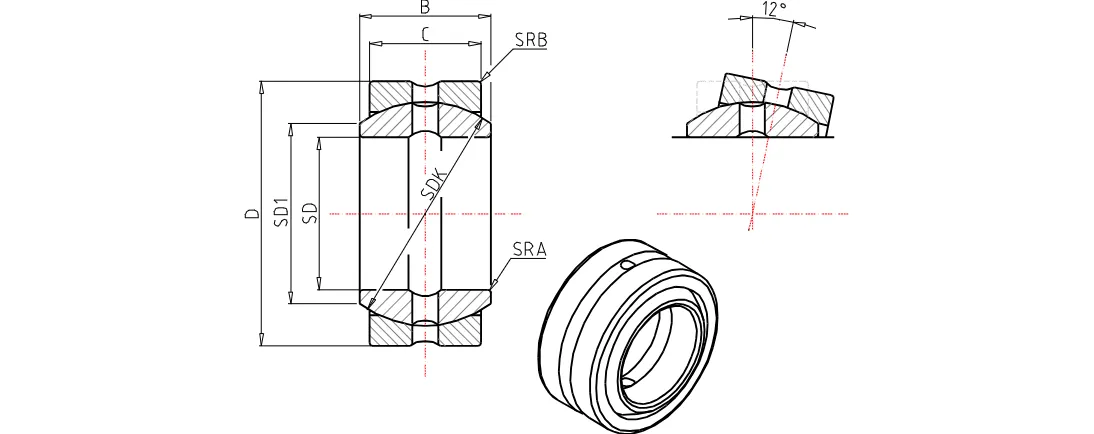

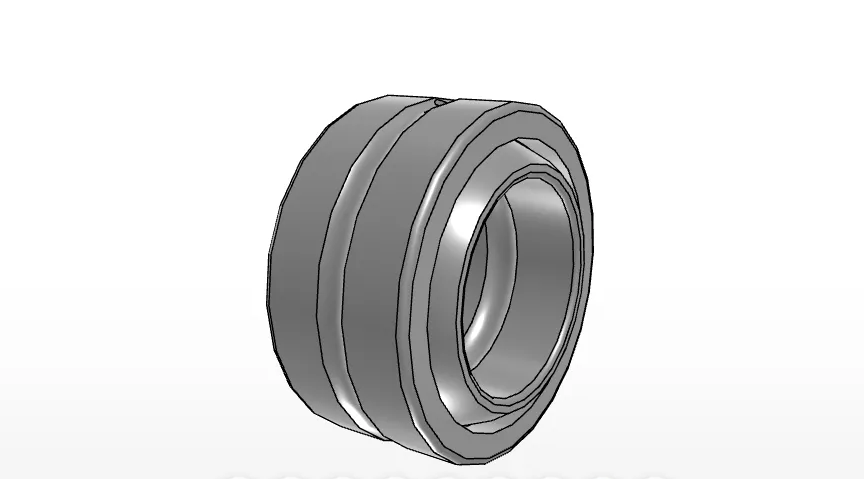

IKO SBB14
Spherical Bushing, Inch Series, High Carbon Steel, Steel on Steel, Not Seperable
(BRAND)：IKO
(Availability)：In Stock
Order Number
SBB14
Shaft Diameter
22.225
mm
Inside Diameter
22.23
mm
Outer Diameter
36.51
mm
Width of innerring
19.43
mm
Width
16.66
mm
Diameter
32.0
mm
Min.Radial internal clearance
0.08
mm
Max.Radial internal clearance
0.18
mm
Dimension related to the installation
25.0
mm
ra max
0.6
mm
rb max
0.8
mm
Dynamic load capacity
52300
N
Static load capacity
314000
N
Mass
0.09
kg
