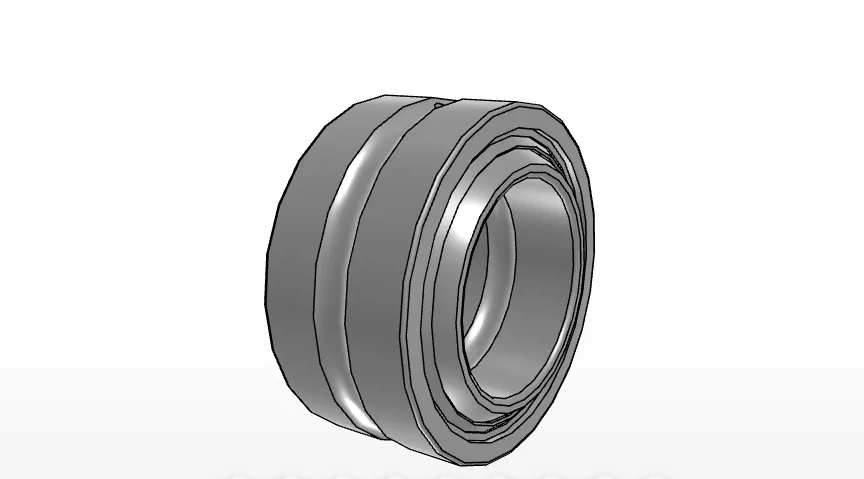

IKO SBB142RS
Spherical Bushing, Inch Series, High Carbon Steel, Steel on Steel, Not Seperable, With Seals
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
SBB14-2RS
Shaft Diameter
22.23
mm
Inside Diameter
22.23
mm
Outer Diameter
36.51
mm
Width of innerring
19.43
mm
Width
16.66
mm
Diameter
32.0
mm
Min.Radial internal clearance
0.08
mm
Max.Radial internal clearance
0.18
mm
Dimension related to the installation
25.0
mm
ra max
0.6
mm
rb max
0.4
mm
Dynamic load capacity
52300
N
Static load capacity
314000
N
Mass
0.09
kg
