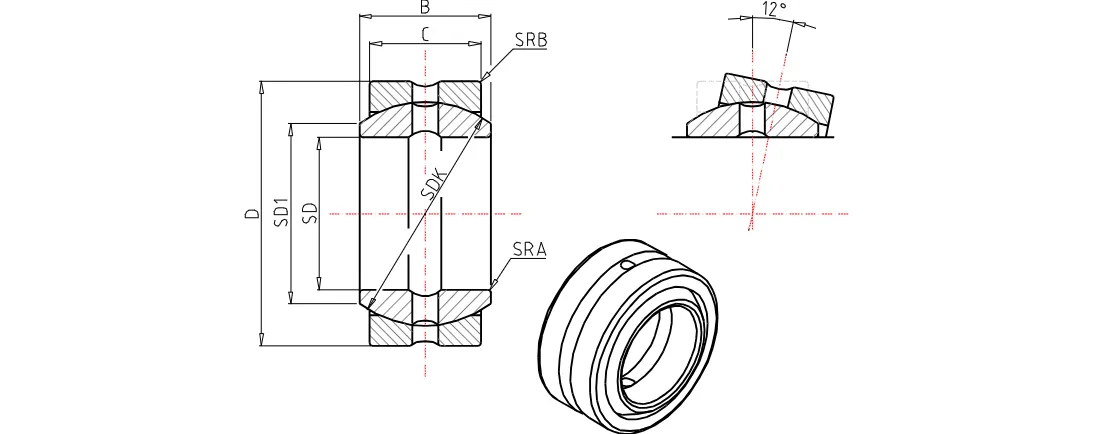

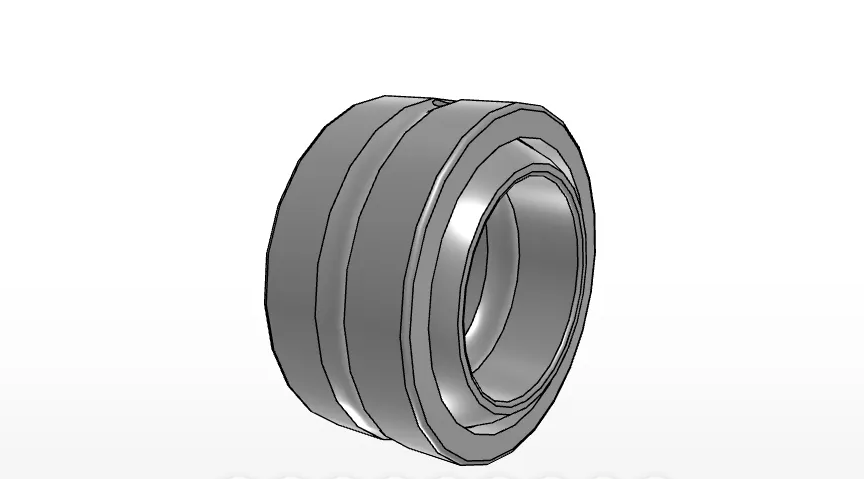

IKO SBB20
Spherical Bushing, Inch Series, High Carbon Steel, Steel on Steel, Not Seperable
(BRAND)：IKO
(Availability)：In Stock
Order Number
SBB20
Shaft Diameter
31.750
mm
Inside Diameter
31.75
mm
Outer Diameter
50.80
mm
Width of innerring
27.76
mm
Width
23.80
mm
Diameter
45.0
mm
Min.Radial internal clearance
0.08
mm
Max.Radial internal clearance
0.18
mm
Dimension related to the installation
35.1
mm
ra max
0.6
mm
rb max
0.8
mm
Dynamic load capacity
105000
N
Static load capacity
630000
N
Mass
0.23
kg
