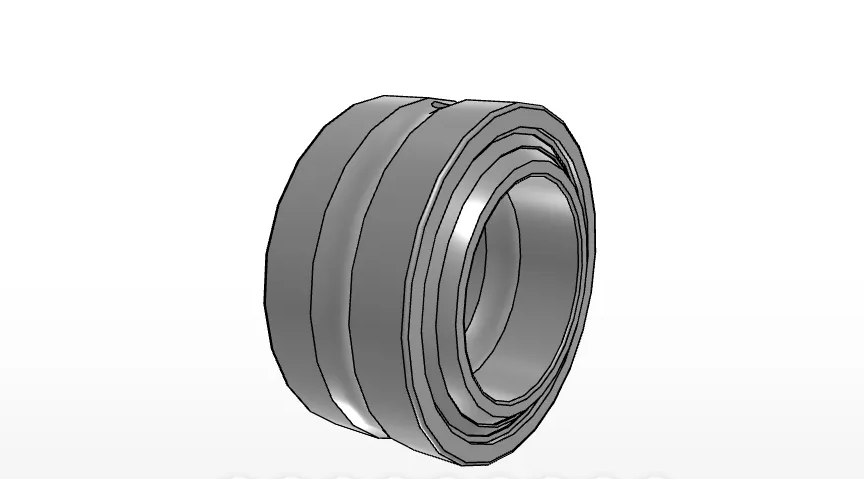

IKO SBB282RS
Spherical Bushing, Inch Series, High Carbon Steel, Steel on Steel, Not Seperable, With Seals
(BRAND)：IKO
(Availability)：In Stock
Order Number
SBB28-2RS
Shaft Diameter
44.45
mm
Inside Diameter
44.45
mm
Outer Diameter
71.44
mm
Width of innerring
38.89
mm
Width
33.32
mm
Diameter
64.0
mm
Min.Radial internal clearance
0.08
mm
Max.Radial internal clearance
0.18
mm
Dimension related to the installation
50.4
mm
ra max
0.6
mm
rb max
0.8
mm
Dynamic load capacity
209000
N
Static load capacity
1250000
N
Mass
0.65
kg
