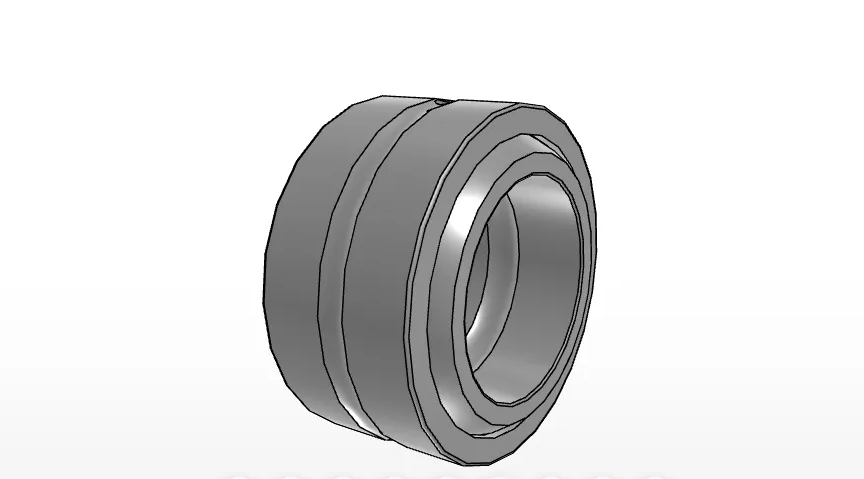

IKO SBB36
Spherical Bushing, Inch Series, High Carbon Steel, Steel on Steel, Not Seperable
(BRAND)：IKO
(Availability)：In Stock
Order Number
SBB36
Shaft Diameter
57.150
mm
Inside Diameter
57.15
mm
Outer Diameter
90.49
mm
Width of innerring
50.01
mm
Width
42.85
mm
Diameter
82.0
mm
Min.Radial internal clearance
0.10
mm
Max.Radial internal clearance
0.20
mm

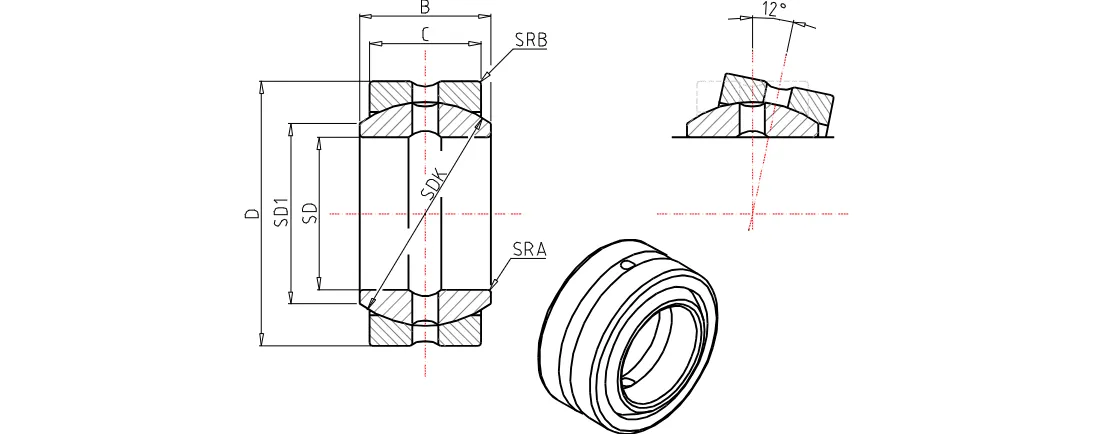

Dimension related to the installation
67.9
mm
ra max
0.6
mm
rb max
0.8
mm
Dynamic load capacity
345000
N
Static load capacity
2070000
N
Mass
1.32
kg
