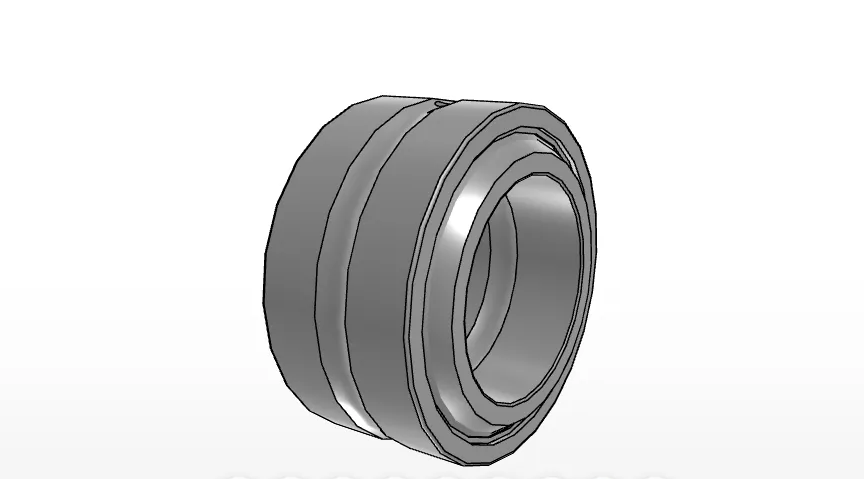

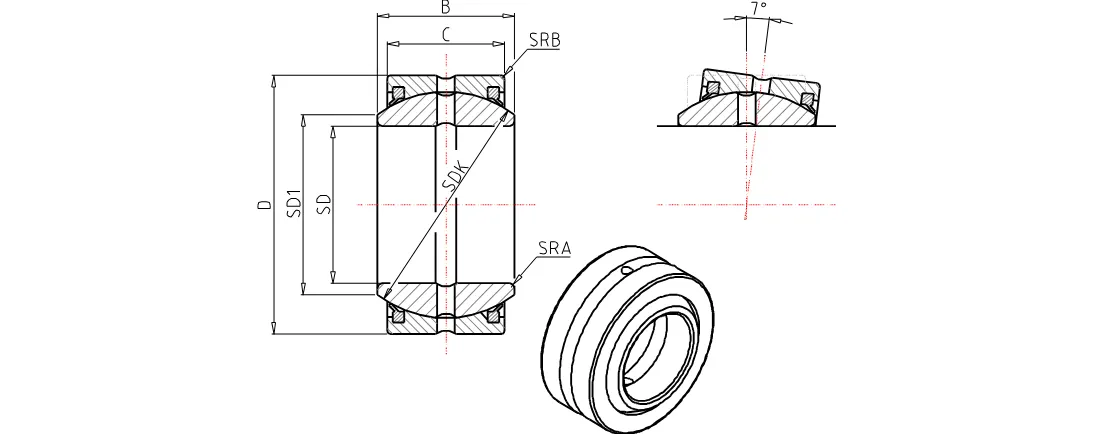

IKO SBB362RS
Spherical Bushing, Inch Series, High Carbon Steel, Steel on Steel, Not Seperable, With Seals
(BRAND)：IKO
(Availability)：In Stock
Order Number
SBB36-2RS
Shaft Diameter
57.15
mm
Inside Diameter
57.15
mm
Outer Diameter
90.49
mm
Width of innerring
50.01
mm
Width
42.85
mm
Diameter
82.0
mm
Min.Radial internal clearance
0.10
mm
Max.Radial internal clearance
0.20
mm
Dimension related to the installation
67.9
mm
ra max
0.6
mm
rb max
0.8
mm
Dynamic load capacity
345000
N
Static load capacity
2070000
N
Mass
1.32
kg
