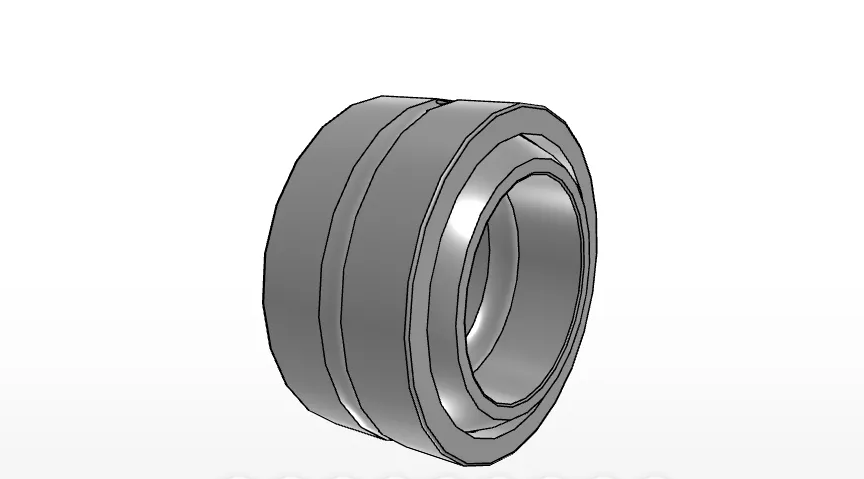

IKO SBB40
Spherical Bushing, Inch Series, High Carbon Steel, Steel on Steel, Not Seperable
(BRAND)：IKO
(Availability)：In Stock
Order Number
SBB40
Shaft Diameter
63.500
mm
Inside Diameter
63.50
mm
Outer Diameter
100.01
mm
Width of innerring
55.55
mm
Width
47.62
mm
Diameter
91.0
mm
Min.Radial internal clearance
0.10
mm
Max.Radial internal clearance
0.20
mm
Dimension related to the installation
72.0
mm
ra max
0.6
mm
rb max
0.8
mm
Dynamic load capacity
425000
N
Static load capacity
2550000
N
Mass
1.85
kg
