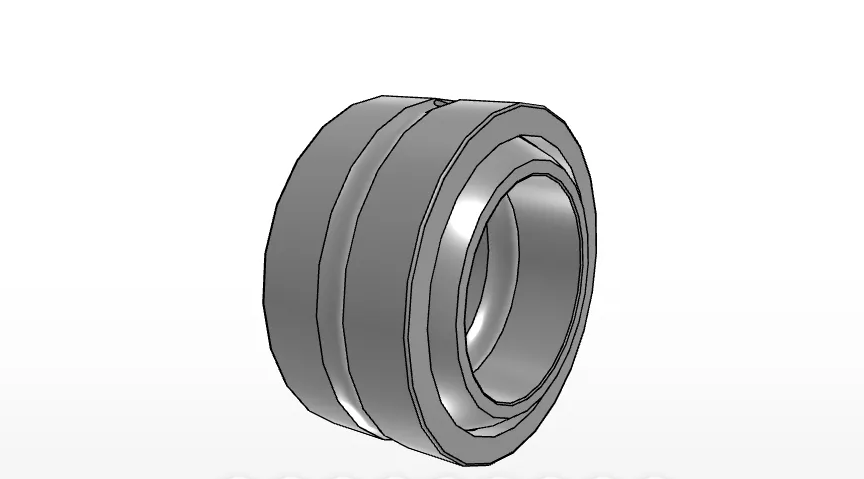

IKO SBB44
Spherical Bushing, Inch Series, High Carbon Steel, Steel on Steel, Not Seperable
(BRAND)：IKO
(Availability)：In Stock
Order Number
SBB44
Shaft Diameter
69.850
mm
Inside Diameter
69.85
mm
Outer Diameter
111.13
mm
Width of innerring
61.11
mm
Width
52.37
mm
Diameter
100.0
mm
Min.Radial internal clearance
0.10
mm
Max.Radial internal clearance
0.20
mm
Dimension related to the installation
79.0
mm
ra max
0.6
mm
rb max
0.8
mm
Dynamic load capacity
514000
N
Static load capacity
3080000
N
Mass
2.44
kg
