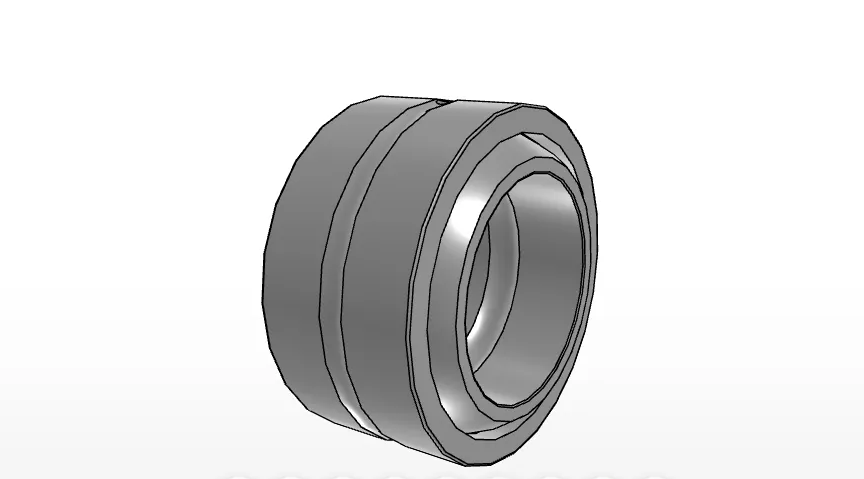

IKO SBB68
Spherical Bushing, Inch Series, High Carbon Steel, Steel on Steel, Not Seperable
(BRAND)：IKO
(Availability)：In Stock
Order Number
SBB68

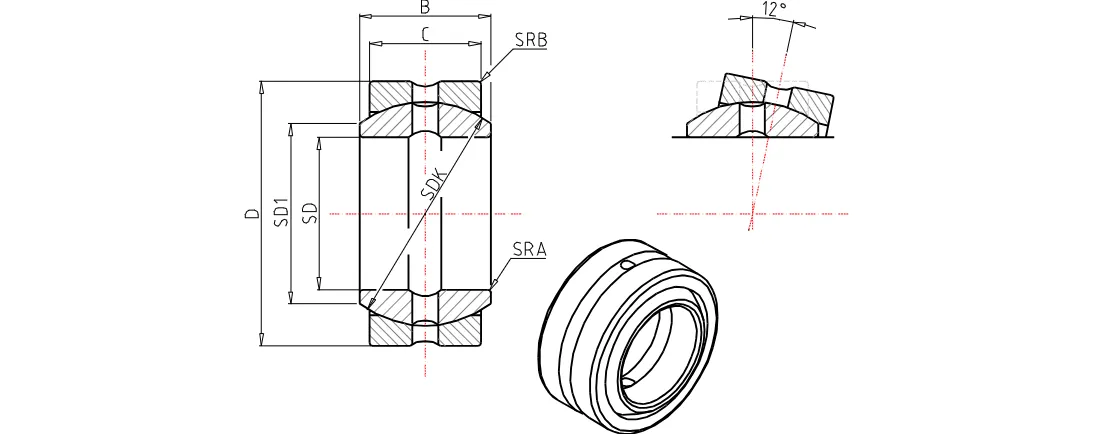

Shaft Diameter
107.950
mm
Inside Diameter
107.95
mm
Outer Diameter
168.28
mm
Width of innerring
94.46
mm
Width
80.95
mm
Diameter
155.0
mm
Min.Radial internal clearance
0.13
mm
Max.Radial internal clearance
0.23
mm
Dimension related to the installation
122.6
mm
ra max
0.8
mm
rb max
1.1
mm
Dynamic load capacity
1230000
N
Static load capacity
7380000
N
Mass
8.46
kg
