INA AM100
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

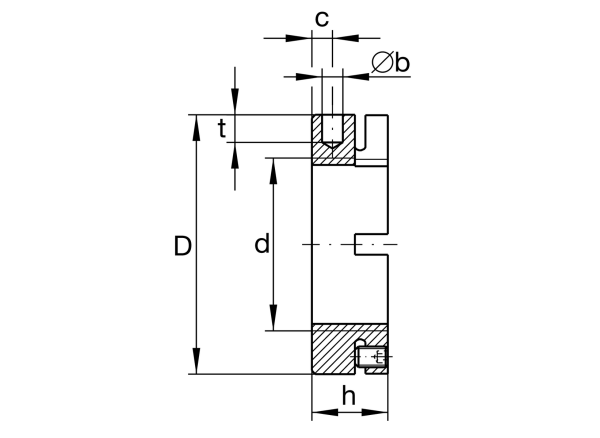

Main Dimensions & Performance Data
d
M100X2
Thread
D
130 mm
Outside diameter
h
30 mm
Height
FaB
740,000 N
Breaking load, axial
ML
1,200 Nm
Breakawag
MAL
250 Nm
Mounting torque reference
Mm
38 kg*cm2
Mass moment of inertia
≈m
1.009 kg
Weight

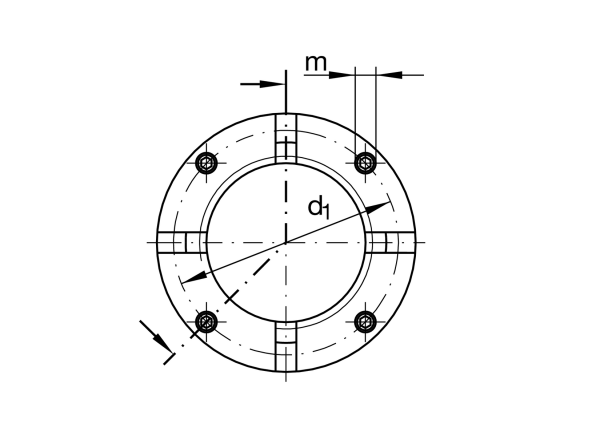

Mounting dimensions
Mm
20 Nm
Mounting torque set screw
