INA AM30
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

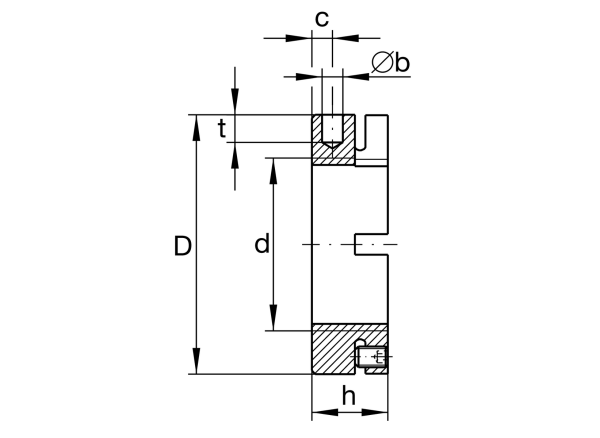

Main Dimensions & Performance Data
d
M30X1,5
Thread
D
52 mm
Outside diameter
h
20 mm
Height
FaB
250,000 N
Breaking load, axial
ML
70 Nm
Breakawag
MAL
32 Nm
Mounting torque reference
Mm
0.86 kg*cm2
Mass moment of inertia
≈m
190.55 g
Weight

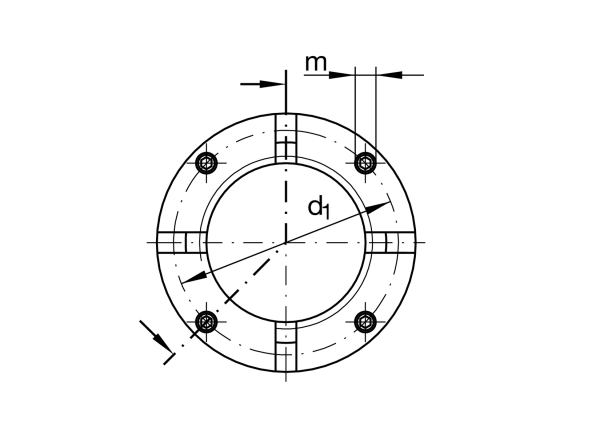

Mounting dimensions
Mm
5 Nm
Mounting torque set screw
