INA AM55
Precision Lock nut
Precision locknuts AM, segments for clamping
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

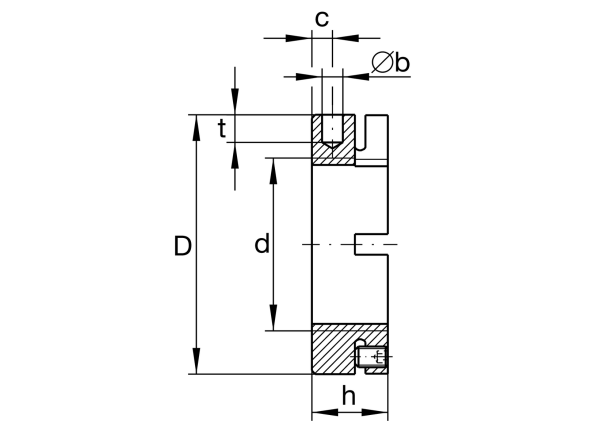

Main Dimensions & Performance Data
d
M55X2
Thread
D
85 mm
Outside diameter
h
26 mm
Height
FaB
520,000 N
Breaking load, axial
ML
320 Nm
Breakawag
MAL
95 Nm
Mounting torque reference
Mm
7.7 kg*cm2
Mass moment of inertia
≈m
563 g
Weight

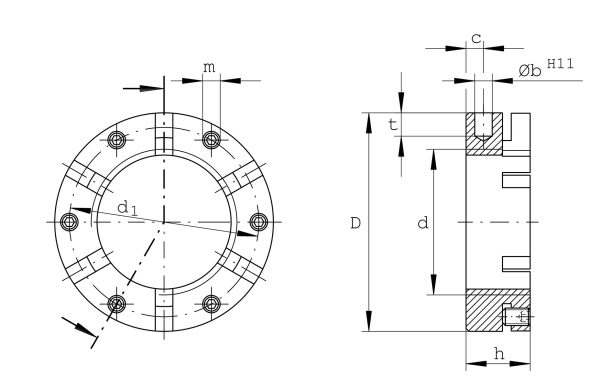

Mounting dimensions
Mm
15 Nm
Mounting torque set screw
