INA AXK0414-TV
Axial Needle Roller and Cage Assembly
Axial needle roller and cage assemblies, single direction, to DIN 5405-2
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

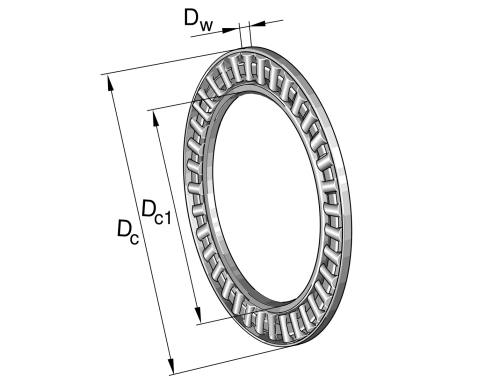

Main Dimensions & Performance Data
Dc1
4 mm
Bore diameter cage
Dc
14 mm
Outside diameter
Dw
2 mm
Rolling element diameter
Ea
13 mm
Raceway dimension
Eb
5 mm
Raceway dimension
ca
4,400 N
Basic dynamic load rating, axial
c0a
8,000 N
Basic static load rating, axial
cua
1,130 N
Fatigue load limit, axial
nG
21,400 1/min
Limiting speed
nϑr
14,900 1/min
Reference speed
≈m
6.2 g
Weight
