INA AXK0515-TV

Axial Needle Roller and Cage Assembly

Axial needle roller and cage assemblies, single direction, to DIN 5405-2

(BRAND)：INA

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

AXK0515-TV

Axial Needle Roller and Cage Assembly

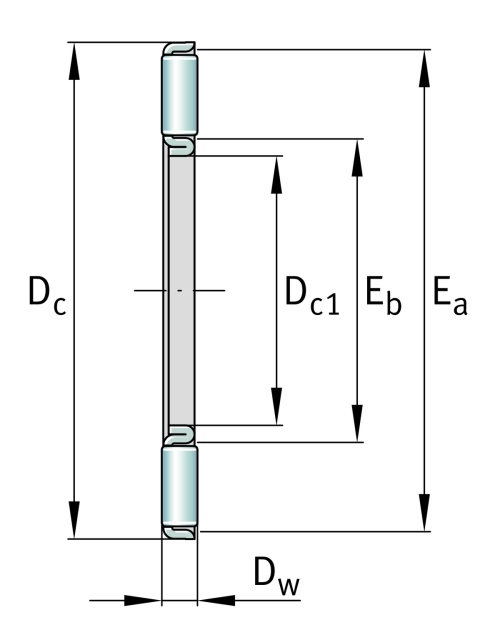

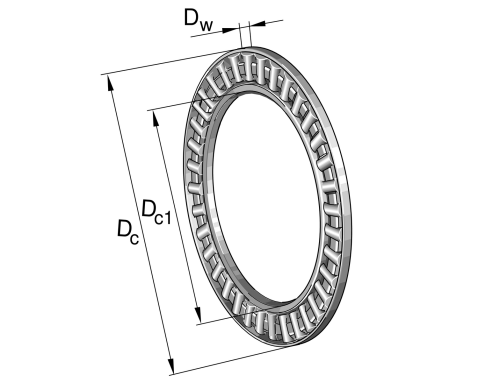

Main Dimensions & Performance Data

D_c1 5 mm Bore diameter cage

D_c 15 mm Outside diameter

D_w 2 mm Rolling element diameter

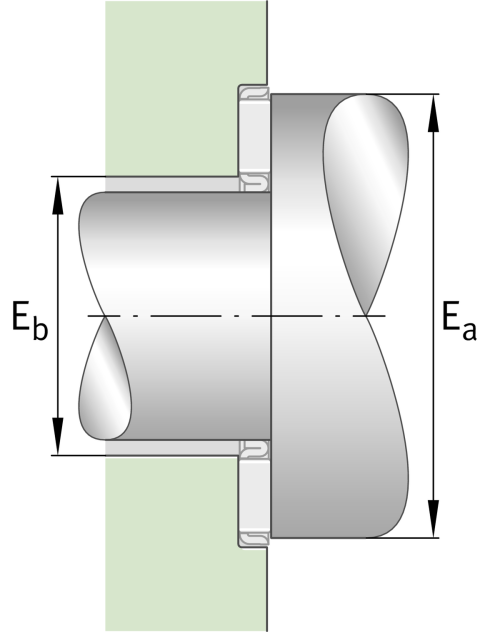

E_a 14 mm Raceway dimension

E_b 6 mm Raceway dimension

c_a 4,750 N Basic dynamic load rating, axial

c_0a 9,200 N Basic static load rating, axial

c_ua 1,290 N Fatigue load limit, axial

n_G 20,500 1/min Limiting speed

n_ϑr 13,000 1/min Reference speed

≈m 0.76 g Weight
