INA AXK2542-A
Axial Needle Roller and Cage Assembly
Axial needle roller and cage assemblies, single direction, to DIN 5405-2
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

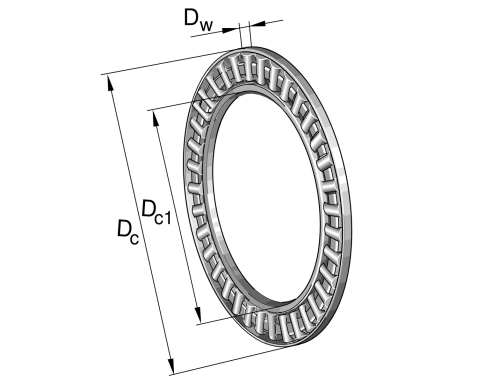

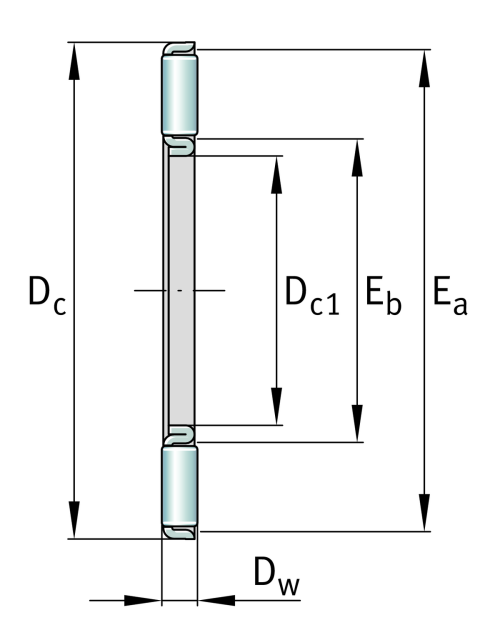

Main Dimensions & Performance Data
Dc1
25 mm
Bore diameter cage
Dc
42 mm
Outside diameter
Dw
2 mm
Rolling element diameter

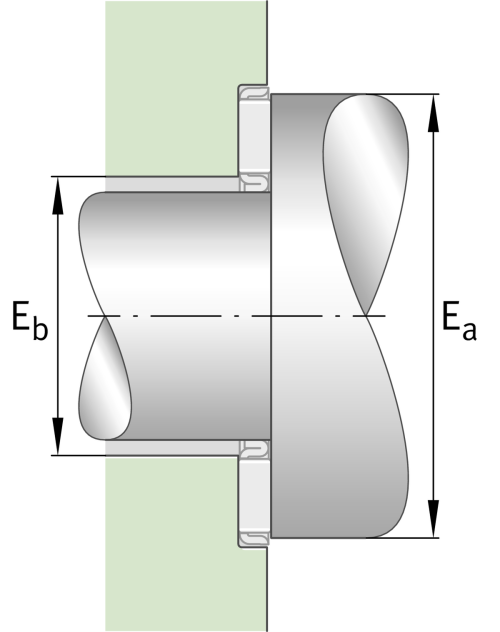

Ea
41 mm
Raceway dimension
Eb
29 mm
Raceway dimension
ca
14,800 N
Basic dynamic load rating, axial
c0a
58,000 N
Basic static load rating, axial
cua
6,000 N
Fatigue load limit, axial
nG
8,600 1/min
Limiting speed
nϑr
3,850 1/min
Reference speed
≈m
7.06 g
Weight
