INA AXK4060-A/0-10
Axial Needle Roller and Cage Assembly
Axial needle roller and cage assemblies, single direction, to DIN 5405-2
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

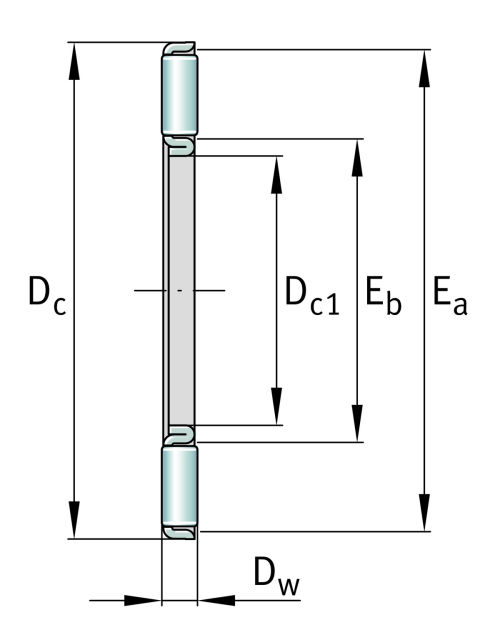

Main Dimensions & Performance Data
Dc1
40 mm
Bore diameter cage
Dc
60 mm
Outside diameter
Dw
3 mm
Rolling element diameter
Ea
58 mm
Raceway dimension
Eb
45 mm
Raceway dimension
ca
28,000 N
Basic dynamic load rating, axial
c0a
114,000 N
Basic static load rating, axial
cua
12,100 N
Fatigue load limit, axial
nG
5,800 1/min
Limiting speed
nϑr
2,440 1/min
Reference speed
≈m
15.974 g
Weight
