Home Brand INA Roller Bearings Axial Needle Roller and Cage Assembly

AXK6085-A/0-10

MORE +

CLOSE +

INA AXK6085-A/0-10

Axial Needle Roller and Cage Assembly

Axial needle roller and cage assemblies, single direction, to DIN 5405-2

(BRAND)：INA

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

AXK6085-A/0-10

Axial Needle Roller and Cage Assembly

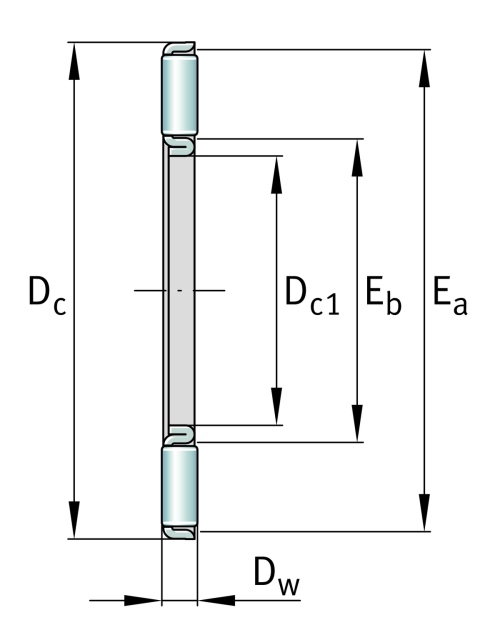

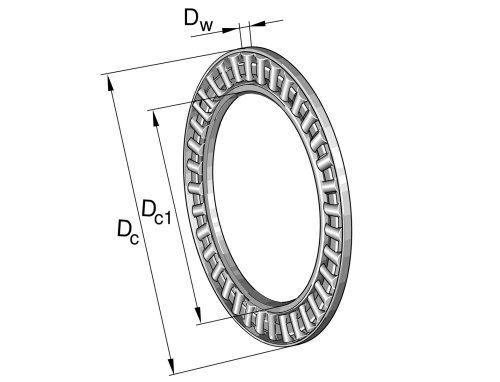

Main Dimensions & Performance Data

D_c1 60 mm Bore diameter cage

D_c 85 mm Outside diameter

D_w 3 mm Rolling element diameter

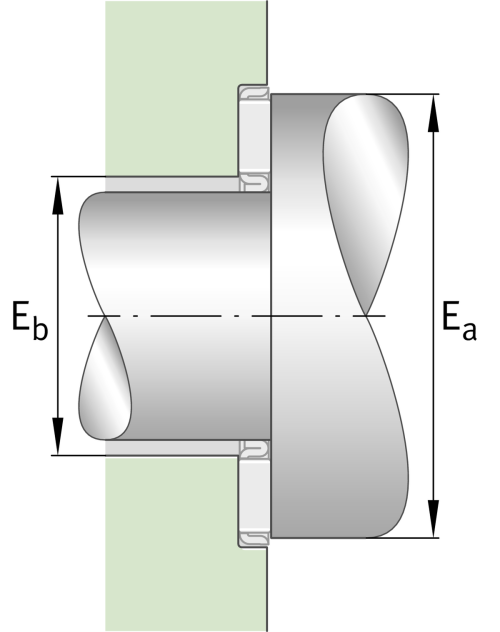

E_a 83 mm Raceway dimension

E_b 65 mm Raceway dimension

c_a 45,000 N Basic dynamic load rating, axial

c_0a 234,000 N Basic static load rating, axial

c_ua 27,000 N Fatigue load limit, axial

n_G 3,950 1/min Limiting speed

n_ϑr 1,590 1/min Reference speed

≈m 33.066 g Weight
