INA CSCA030
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCA, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

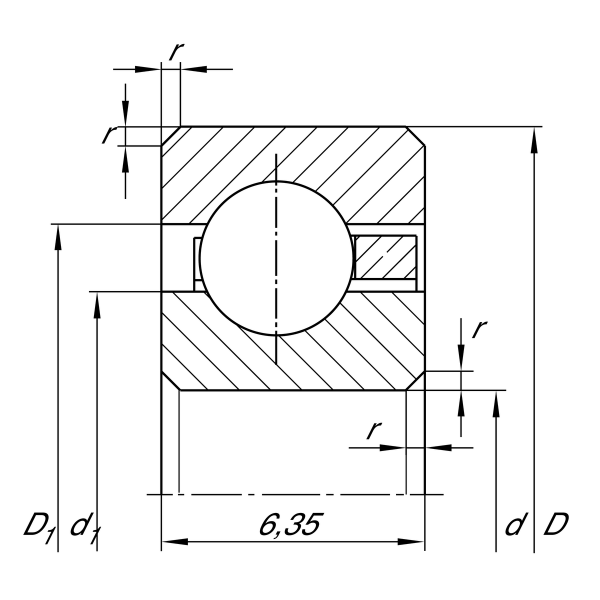

Main Dimensions & Performance Data
d
76.2 mm
Bore diameter
D
88.9 mm
Outside diameter
B
6.35 mm
Width
Cr
3,800 N
Basic dynamic load rating, radial
C0r
3,900 N
Basic static load rating, radial
CG
7,100 1/min
Limiting speed
≈m
70 g
Weight
