INA CSXC120
Thin Section Bearings

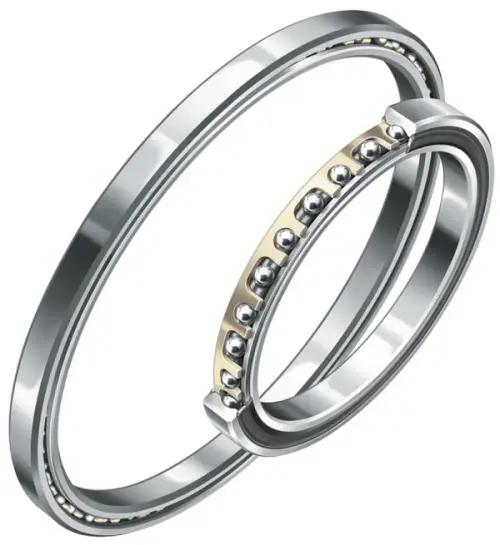

Four point contact bearing, Thin section bearing CSXC, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

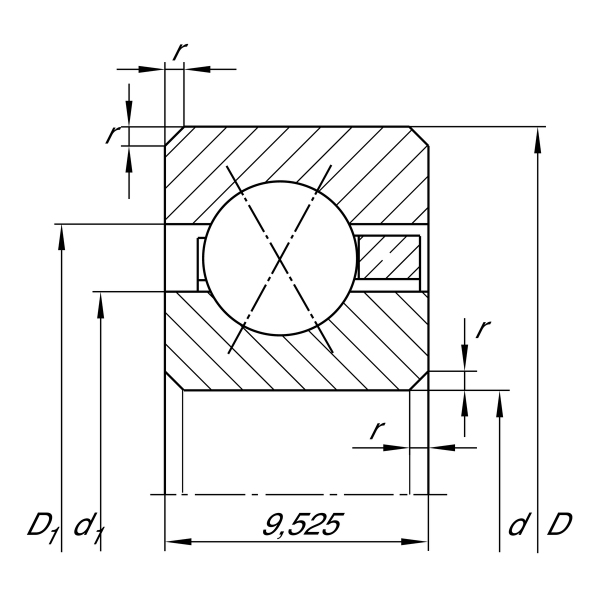

Main Dimensions & Performance Data
d
304.8 mm
Bore diameter
D
323.85 mm
Outside diameter
B
9.525 mm
Width
Cr
15,300 N
Basic dynamic load rating, radial
C0r
42,000 N
Basic static load rating, radial
CG
890 1/min
Limiting speed
≈m
0.57 kg
Weight
