INA CSCA040
Thin Section Bearings
Deep groove ball bearing, Thin section bearing CSCA, brass sheet metal cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

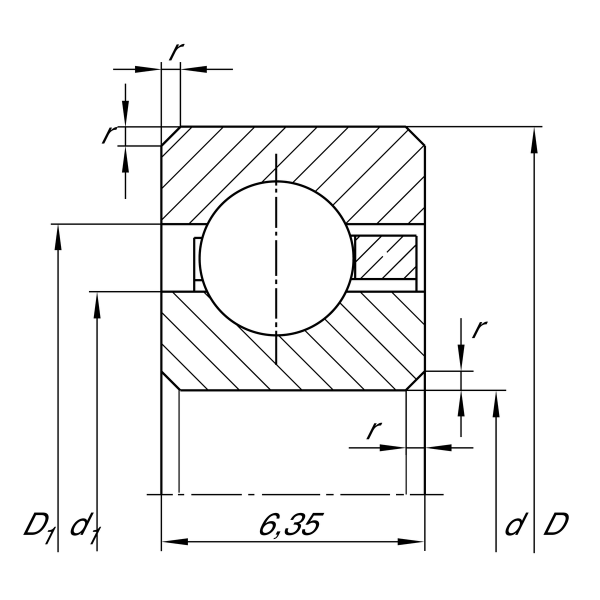

Main Dimensions & Performance Data
d
101.6 mm
Bore diameter
D
114.3 mm
Outside diameter
B
6.35 mm
Width
Cr
4,200 N
Basic dynamic load rating, radial
C0r
5,200 N
Basic static load rating, radial
CG
5,400 1/min
Limiting speed
≈m
90 g
Weight
